Orbea LAUFEY H30 2022

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
140mm

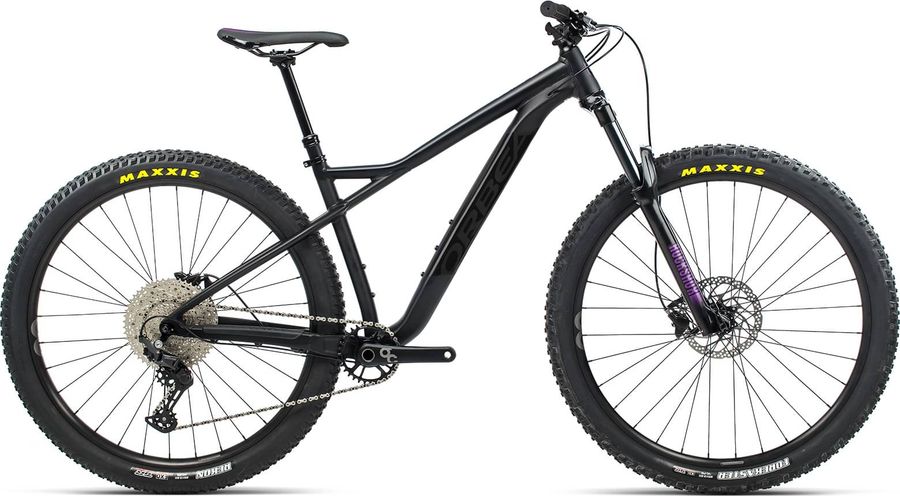

Orbea LAUFEY H30 2022

About the Orbea LAUFEY H30 2022

The Orbea LAUFEY H30 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea LAUFEY H30 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
OC1 3D Forged 35mm interface 7º
Saddle
Selle Royal 2043 HRN
Headset
FSA 1-1/8 - 1-1/2" Integrated
Seatpost
OC2 Dropper 31.6mm
Handlebar
OC1 35mm 12mm Rise 780mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
OC1 Alloy forged Boost 32t
Shifter
Shimano Deore M5100
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Orbea OC1 29c Tubeless Ready
Tires
Maxxis Rekon 2.60" FB 60 TPI Dual Exo TR

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
470,0
521,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
576,0
604,0
630,0
660,0
d
Head tube length
95,0
100,0
110,0
130,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
122,0
122,0
122,0
122,0
h
Wheelbase
1144,0
1172,0
1,2e3
1233,0
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
630,0
634,0
643,0
662,0
l
Reach
407,0
433,0
457,0
482,0
m
Standover height
676,0
712,0
724,0
761,0
x
Bottom bracket height
313,5
313,5
313,5
313,5
y
Front center
719,0
747,0
775,0
808,0
