Orbea MX 10 27.5 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

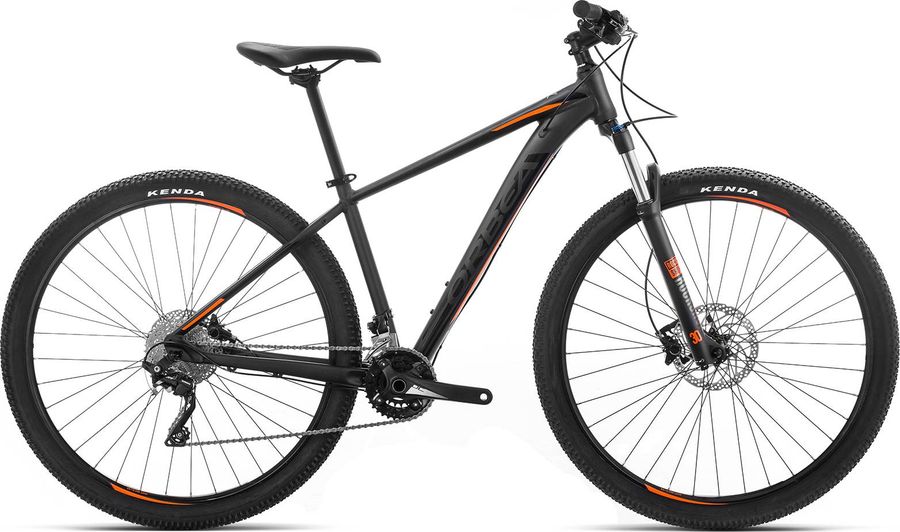

Orbea MX 10 27.5 2019

About the Orbea MX 10 27.5 2019

The Orbea MX 10 27.5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes e remote lockout.

Features

The Orbea MX 10 27.5 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Pedals
VP-537 Black
Components
Steam
Orbea OC-II
Saddle
Selle Royal 2062 HRN
Headset
1-1/8" Semi-Integrated
Seatpost
Orbea OC-I 27.2x400mm
Handlebar
Orbea OC-I Riser 720mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Prowheel Zephyr-501-TT 22x36t
Shifter
Shimano Deore M6000
Rear derailleur
Shimano XT SGS Shadow Direct Mount
Front derailleur
Shimano Deore M6025 31.8mm
Chain
FSA Issue
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Orbea MX Alloy only disc
Front suspension
RockShox 30 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30S-TK-A4
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 30TPI

Geometry

Size SM MD LG
a
Seat tube length
388,0
430,0
460,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
542,0
569,0
590,0
d
Head tube length
102,0
108,0
118,0
e
Head tube angle
69,0º
70,0º
70,0º
f
Rake
42,0
42,0
42,0
g
Trail
91,0
86,0
53,0
h
Wheelbase
1064,0
1080,0
1103,0
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
588,0
598,0
607,0
l
Reach
375,0
399,0
386,0
m
Standover height
795,5
820,67
839,59
x
Bottom bracket height
312,5
312,5
312,5
y
Front center
623,0
639,0
662,0
