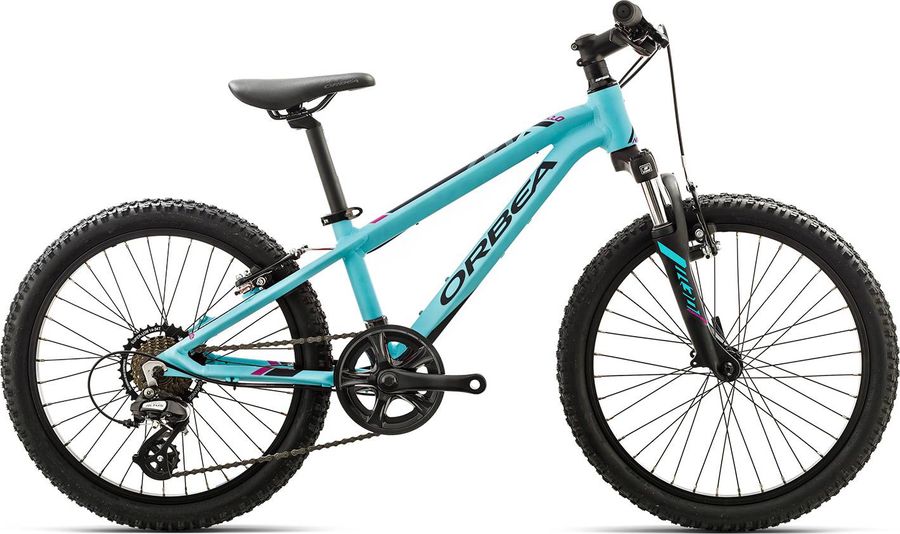

Orbea MX 20 XC 2019
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
20"
Suspension type
Hardtail
Front travel
40mm
About the Orbea MX 20 XC 2019
The Orbea MX 20 XC 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 7 gears (1x7). Its features include internal routing.
Features
Internal routing
More info
Internal routing
Specifications
|
Pedals
|
Resine BMX
|
|---|
|
Steam
|
Orbea OC-II
|
|---|---|
|
Brakes
|
Alu V-Brake
|
|
Saddle
|
Velo 7087
|
|
Headset
|
1-1/8" Semi-Integrated
|
|
Seatpost
|
Orbea OC 27.2x250mm
|
|
Handlebar
|
Orbea OC-I Riser 540mm
|
|
Brake lever
|
Orbea
|
|
Crankset
|
Alloy 36t (127)
|
|---|---|
|
Shifter
|
Shimano M310
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Cassette
|
Shimano MF-TZ31
|
|
Chain
|
KMC Z50
|
|
Frame
|
Orbea Hexatubing Aluminum. Mx Compact Geometry. Internal cable routing. Only disc.
|
|---|---|
|
Front suspension
|
SR Suntour M3010
|
|
Rims
|
Orbea Alu 20"
|
|---|---|
|
Tires
|
Kenda 922 20x2.00
|
Geometry
| Size | 16" | 20" | 24" | 26" |
|---|---|---|---|---|
|
a
Seat tube length
|
207,0
|
257,0
|
329,0
|
367,0
|
|
b
Seat tube angle
|
73,2º
|
73,0º
|
72,0º
|
73,0º
|
|
c
Top tube length
|
379,3
|
439,0
|
513,0
|
530,0
|
|
d
Head tube length
|
90,0
|
95,0
|
90,0
|
90,0
|
|
e
Head tube angle
|
71,0º
|
72,0º
|
71,0º
|
70,0º
|
|
f
Rake
|
35,0
|
33,0
|
36,0
|
39,0
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
738,0
|
824,0
|
933,0
|
1009,0
|
|
i
Chainstay length
|
305,0
|
337,0
|
381,0
|
419,0
|
|
j
Bottom bracket drop
|
8,0
|
16,0
|
30,0
|
45,0
|
|
k
Stack height
|
317,0
|
419,0
|
494,0
|
532,0
|
|
l
Reach
|
282,0
|
314,0
|
347,0
|
365,0
|
|
m
Standover height
|
436,0
|
527,0
|
654,0
|
707,0
|
|
x
Bottom bracket height
|
192,0
|
237,0
|
272,0
|
280,0
|
|
y
Front center
|
433,0
|
488,0
|
554,0
|
594,0
|
