Orbea MX 24 TEAM-DISC-USA 2019

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
24"
Suspension type
Rigid

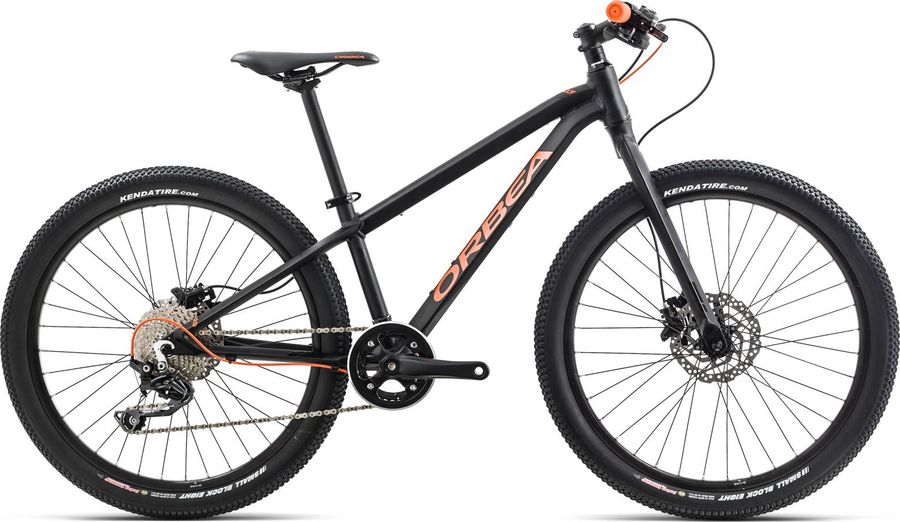

Orbea MX 24 TEAM-DISC-USA 2019

About the Orbea MX 24 TEAM-DISC-USA 2019

The Orbea MX 24 TEAM-DISC-USA 2019 is a Rigid Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes e tubeless ready.

Features

The Orbea MX 24 TEAM-DISC-USA 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Resine BMX
Components
Steam
Orbea OC-II
Saddle
Velo 5061
Headset
1-1/8" Semi-Integrated
Seatpost
Orbea OC-I 27.2x300mm
Handlebar
Orbea OC-I Riser 560mm
Brakes
Shimano Alivio BR-M395
Drivetrain
Crankset
Alloy 32t (152)
Shifter
Shimano Deore M6000
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
FSA Issue
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Front suspension
Orbea Alu 24" only disc
Frame
Orbea MX 24 Alu only disc
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Kenda 1047 24x2,10" 60TPI Wire DTC

Geometry

Size 16" 20" 24" 26"
a
Seat tube length
207,0
257,0
329,0
367,0
b
Seat tube angle
73,2º
73,0º
72,0º
73,0º
c
Top tube length
379,3
439,0
513,0
530,0
d
Head tube length
90,0
95,0
90,0
90,0
e
Head tube angle
71,0º
72,0º
71,0º
70,0º
f
Rake
35,0
33,0
36,0
39,0
g
Trail
-
-
-
-
h
Wheelbase
738,0
824,0
933,0
1009,0
i
Chainstay length
305,0
337,0
381,0
419,0
j
Bottom bracket drop
8,0
16,0
30,0
45,0
k
Stack height
317,0
419,0
494,0
532,0
l
Reach
282,0
314,0
347,0
365,0
m
Standover height
436,0
527,0
654,0
707,0
x
Bottom bracket height
192,0
237,0
272,0
280,0
y
Front center
433,0
488,0
554,0
594,0
