Orbea MX 24 XC 2018

MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
24"
Suspension type
Hardtail
Front travel
40mm

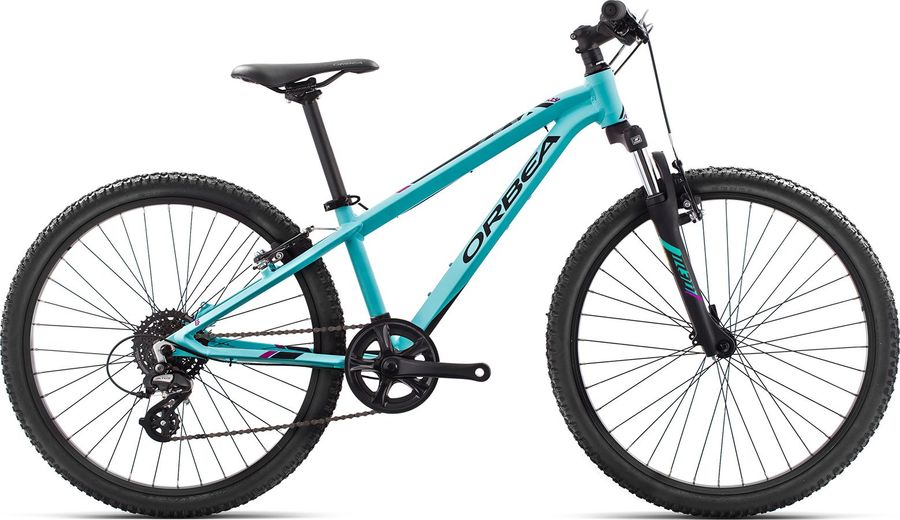

Orbea MX 24 XC 2018

About the Orbea MX 24 XC 2018

The Orbea MX 24 XC 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 8 gears (1x8). Its features include internal routing.

Features

The Orbea MX 24 XC 2018 has 1 features listed below.
cabeamento-interno
Internal routing More info

Specifications

Acessories
Pedals
Resine BMX
Components
Steam
Orbea OC-II
Brakes
Alu V-Brake
Saddle
Velo 5061
Headset
1-1/8" Semi-Integrated
Seatpost
Orbea OC-I 27.2x300mm
Handlebar
Orbea OC-I Riser 560mm
Brake lever
Orbea
Drivetrain
Crankset
Alloy 36t (152)
Shifter
Shimano M310
Rear derailleur
Shimano Altus RD-M310 Smart 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M310-Smart
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/15T
Pulley cage
Smart
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Chain
KMC X8
Cassette
Shimano CS-HG31-8 HG
Combination names
11-30T
11-32T
11-34T
Compatible chain
IG/HG
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG31-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Frameset
Frame
Orbea Hexatubing Aluminum. Mx Compact Geometry. Internal cable routing. Only disc.
Front suspension
SR Suntour M3010
Wheels
Rims
Orbea Alu 24"
Tires
Kenda 922 24x1.95

Geometry

Size 16" 20" 24" 26"
a
Seat tube length
207,0
257,0
329,0
367,0
b
Seat tube angle
73,2º
73,0º
72,0º
73,0º
c
Top tube length
379,3
439,0
513,0
530,0
d
Head tube length
90,0
95,0
90,0
90,0
e
Head tube angle
71,0º
72,0º
71,0º
70,0º
f
Rake
35,0
33,0
36,0
39,0
g
Trail
-
-
-
-
h
Wheelbase
738,0
824,0
933,0
1009,0
i
Chainstay length
305,0
337,0
381,0
419,0
j
Bottom bracket drop
8,0
16,0
30,0
45,0
k
Stack height
317,0
419,0
494,0
532,0
l
Reach
282,0
314,0
347,0
365,0
m
Standover height
436,0
527,0
654,0
707,0
x
Bottom bracket height
192,0
237,0
272,0
280,0
y
Front center
433,0
488,0
554,0
594,0
