Orbea MX 30 27.5 2021

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail

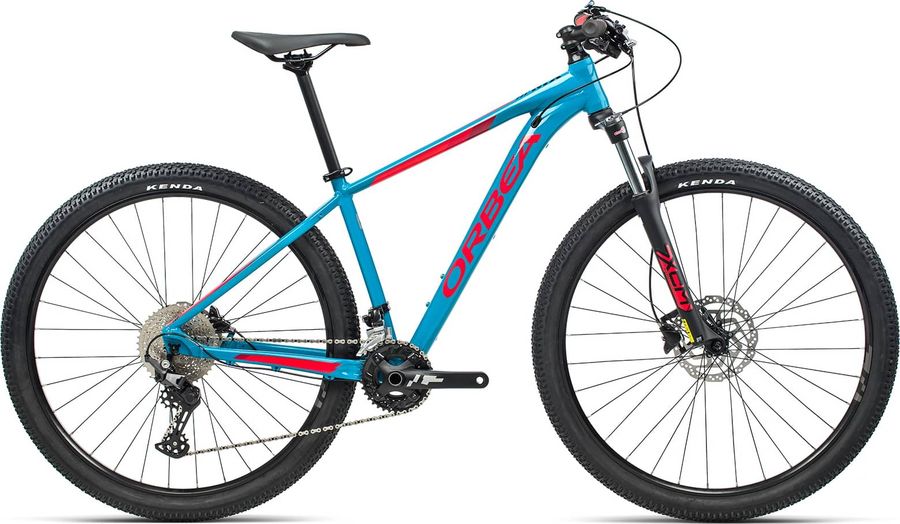

Orbea MX 30 27.5 2021

About the Orbea MX 30 27.5 2021

The Orbea MX 30 27.5 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes.

Features

The Orbea MX 30 27.5 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Alloy 31.8mm interface 7º
Saddle
Selle Royal 2058 DRN
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seatpost
Alloy 27.2 Offset 0
Handlebar
Alloy Flat 31.8mm 720mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Alloy forged 26x36t 10S
Shifter
Shimano Deore M4100
Front derailleur
Shimano Deore M6025 31.8mm
Chain
KMC X10
Rear derailleur
Shimano RD-M4120-SGS SGS 11/10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M4120-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
11/10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Orbea MX Alloy only disc
Front suspension
SR Suntour XCM-RL
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 30TPI

Geometry

Size SM MD
a
Seat tube length
388,0
430,0
b
Seat tube angle
74,0º
74,0º
c
Top tube length
542,0
569,0
d
Head tube length
102,0
108,0
e
Head tube angle
69,0º
70,0º
f
Rake
42,0
42,0
g
Trail
91,0
86,0
h
Wheelbase
1064,0
1080,0
i
Chainstay length
445,0
445,0
j
Bottom bracket drop
45,0
45,0
k
Stack height
588,0
598,0
l
Reach
375,0
399,0
m
Standover height
795,5
820,67
x
Bottom bracket height
312,5
312,5
y
Front center
623,0
639,0
