Orbea MX 30 29 2019

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

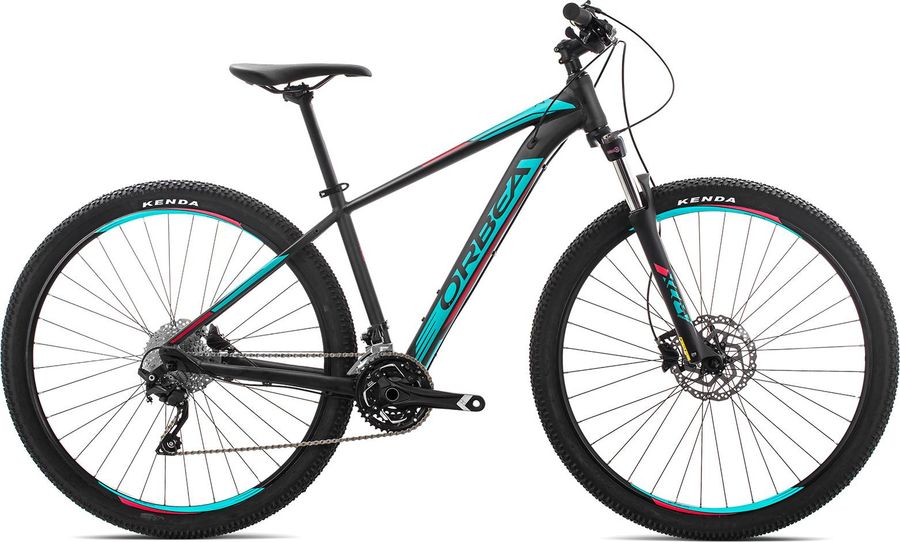

Orbea MX 30 29 2019

About the Orbea MX 30 29 2019

The Orbea MX 30 29 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 30 gears (3x10). Its features include hydraulic disc brakes.

Features

The Orbea MX 30 29 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
VP-537 Black
Components
Steam
Orbea OC-II
Saddle
Selle Royal 2062 HRN
Headset
1-1/8" Semi-Integrated
Seatpost
Orbea OC-I 27.2x400mm
Handlebar
Orbea OC-I Riser 720mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Prowheel Marvel-951-TT 22x30x40t
Shifter
Shimano Deore M6000
Front derailleur
Shimano Deore M611 31.8mm
Chain
FSA Issue
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Orbea MX Alloy only disc
Front suspension
SR Suntour XCM-RL
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 30TPI

Geometry

Size MD LG XL
a
Seat tube length
430,0
470,0
540,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
555,0
574,0
614,0
d
Head tube length
104,0
115,0
138,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
g
Trail
87,0
87,0
87,0
h
Wheelbase
1074,0
1094,0
1135,0
i
Chainstay length
446,0
446,0
446,0
j
Bottom bracket drop
65,0
65,0
65,0
k
Stack height
619,0
629,0
651,0
l
Reach
377,0
393,0
426,0
m
Standover height
819,17
833,09
877,73
x
Bottom bracket height
305,0
305,0
305,0
y
Front center
636,0
656,0
697,0
