Orbea MX 50 27.5 2022

MTB Cross Country
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail

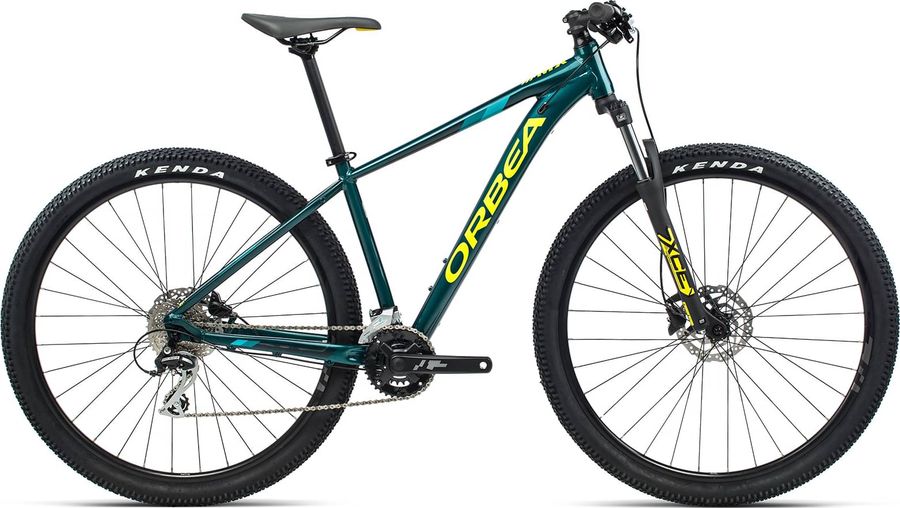

Orbea MX 50 27.5 2022

About the Orbea MX 50 27.5 2022

The Orbea MX 50 27.5 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 16 gears (2x8). Its features include hydraulic disc brakes.

Features

The Orbea MX 50 27.5 2022 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Alloy 31.8mm interface 7º
Saddle
Selle Royal 2058 DRN
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seatpost
Alloy 27.2 Offset 0
Handlebar
Alloy Flat 31.8mm 720mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Alloy forged 22x36t 7/8S
Shifter
Shimano SL-M315
Front derailleur
Shimano M315 31.8mm
Chain
KMC X8
Cassette
Sunrace M66 11-34T 8-speed
Rear derailleur
Shimano Acera RD-M360 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M360-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Orbea MX Alloy only disc
Front suspension
SR Suntour XCE
Wheels
Rims
Mach1 ER20 19c
Tires
Kenda K1153 2.35" 22TPI

Geometry

Size SM MD
a
Seat tube length
388,0
430,0
b
Seat tube angle
74,0º
74,0º
c
Top tube length
542,0
569,0
d
Head tube length
102,0
108,0
e
Head tube angle
69,0º
70,0º
f
Rake
42,0
42,0
g
Trail
91,0
86,0
h
Wheelbase
1064,0
1080,0
i
Chainstay length
445,0
445,0
j
Bottom bracket drop
45,0
45,0
k
Stack height
588,0
598,0
l
Reach
375,0
399,0
m
Standover height
795,5
820,67
x
Bottom bracket height
312,5
312,5
y
Front center
623,0
639,0
