Orbea MX 50 29 2019

MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

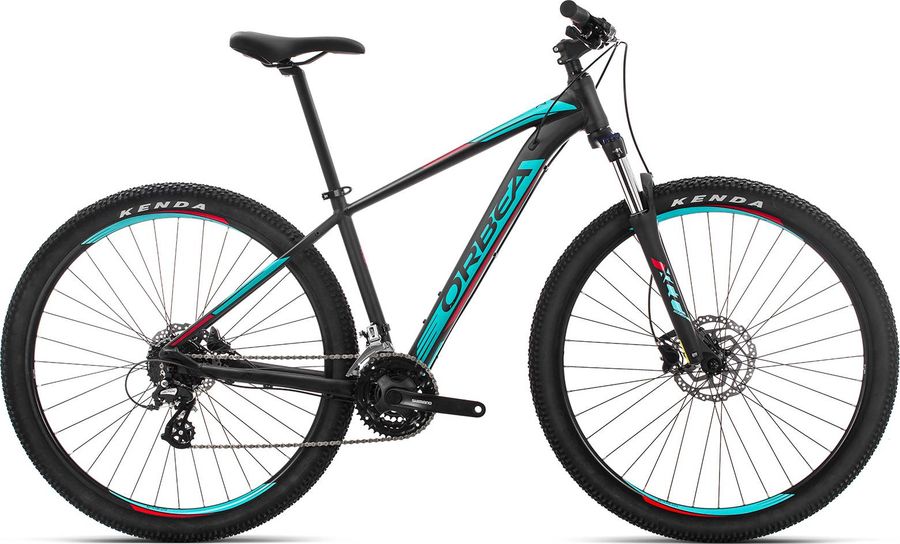

Orbea MX 50 29 2019

About the Orbea MX 50 29 2019

The Orbea MX 50 29 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes.

Features

The Orbea MX 50 29 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
VP-537 Black
Components
Steam
Alloy 31.8 A:6º
Saddle
Selle Royal 2073
Headset
1-1/8" Semi-Integrated
Seatpost
Orbea OC 27.2x400mm
Handlebar
Orbea OC Riser 720mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano TY301 24x34x42t
Shifter
Shimano M310
Front derailleur
Shimano Altus M313 31.8mm
Rear derailleur
Shimano Altus RD-M310 Smart 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M310-Smart
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/15T
Pulley cage
Smart
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Chain
KMC X8
Cassette
Shimano Altus CS-HG200-8 HG
Combination names
12-32T
Compatible chain
HG 8-speed
Lock ring finish
Painted
Lock ring material
Steel
Model
CS-HG200-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Frameset
Frame
Orbea MX Alloy only disc
Front suspension
SR Suntour XCT 30
Wheels
Rims
Mach1 ER20 19c
Tires
Kenda K1153 2.35" 22TPI

Geometry

Size MD LG XL
a
Seat tube length
430,0
470,0
540,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
555,0
574,0
614,0
d
Head tube length
104,0
115,0
138,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
g
Trail
87,0
87,0
87,0
h
Wheelbase
1074,0
1094,0
1135,0
i
Chainstay length
446,0
446,0
446,0
j
Bottom bracket drop
65,0
65,0
65,0
k
Stack height
619,0
629,0
651,0
l
Reach
377,0
393,0
426,0
m
Standover height
819,17
833,09
877,73
x
Bottom bracket height
305,0
305,0
305,0
y
Front center
636,0
656,0
697,0
