Orbea MX ENT 40 27.5 2022

MTB Cross Country
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Orbea MX ENT 40 27.5 2022

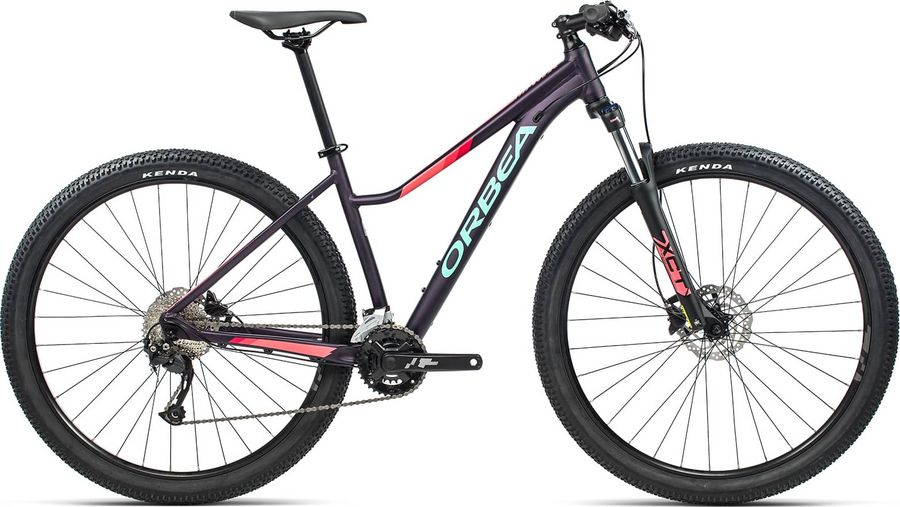

About the Orbea MX ENT 40 27.5 2022

The Orbea MX ENT 40 27.5 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes.

Features

The Orbea MX ENT 40 27.5 2022 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Alloy 31.8mm interface 7º
Saddle
Selle Royal 2058 DRN
Headset
VP-Z104PD 1-1/8" Semi-Cartridge
Seatpost
Alloy 27.2 Offset 0
Handlebar
Alloy Flat 31.8mm 720mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Alloy forged 22x36t 9S
Shifter
Shimano Alivio SL-M3100
Front derailleur
Shimano M2020 31.8mm
Cassette
Sunrace M98 11-36T 9-speed
Chain
Shimano CN-HG53 299 g
Average weight (g)
299
Chromizing treatment roller link pin
Model
CN-HG53
Pin link plate
Gray
Roller link plate
Brown
Type
HG 9-speed
Rear derailleur
Shimano Alivio RD-M3100 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
CN-HG53 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M3100-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Orbea MX Entrance Alloy only disc
Front suspension
SR Suntour XCT 30
Wheels
Rims
Orbea Black Rock 23c Disc
Tires
Kenda K1153 2.35" 30TPI

Geometry

Size SM MD
a
Seat tube length
409,0
445,0
b
Seat tube angle
74,0º
74,0º
c
Top tube length
542,0
566,0
d
Head tube length
105,0
113,0
e
Head tube angle
69,5º
70,0º
f
Rake
42,0
42,0
g
Trail
89,0
85,0
h
Wheelbase
1059,0
1078,0
i
Chainstay length
432,0
432,0
j
Bottom bracket drop
45,0
45,0
k
Stack height
580,0
589,0
l
Reach
374,0
395,0
m
Standover height
600,0
600,0
x
Bottom bracket height
300,0
300,0
y
Front center
631,0
650,0
