Orbea OCCAM AM H10 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

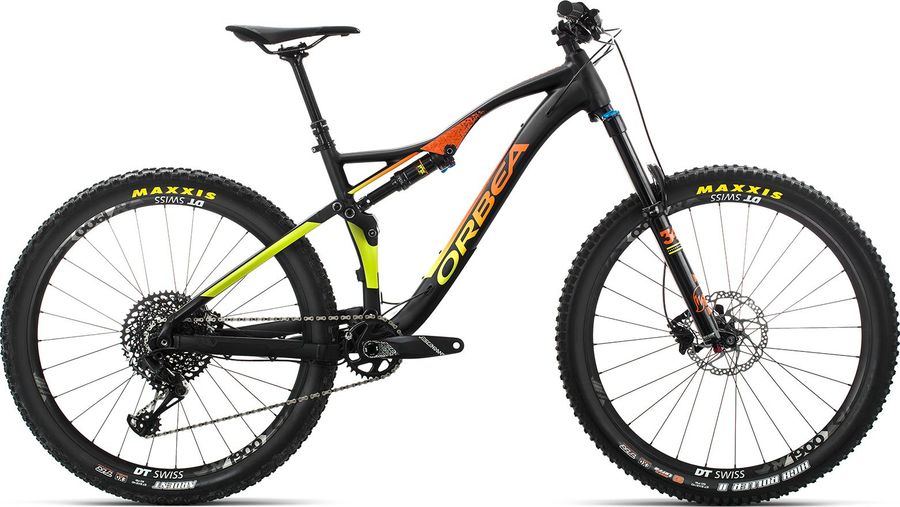

Orbea OCCAM AM H10 2018

About the Orbea OCCAM AM H10 2018

The Orbea OCCAM AM H10 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea OCCAM AM H10 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Aeffect R 35mm interface
Saddle
Selle Italia XR Trail Selle Italia X-LR Ti Flow
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm Crank brothers Highline 31,6x425/150mm
Handlebar
Race Face Aeffect 35 20mm Riser 760mm Race Face Next 35 Riser 20/780mm+Turbine 35 Kit (B
Brake lever
Shimano MT500 Hydraulic
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Descendant CNC Eagle Dub Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA)
Shifter
SRAM GX Eagle
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Orbea Occam AM 2018 Hydro Triple Butted 150mm travel 27.5 C-Boost 12x148 PF
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
DT M-1900 Spline 30c TLR 15/110mm CL
Tires
Maxxis Ardent 2.40" TLR 60 Tpi Exo Dual
Rear hub
DT Swiss M-1900 Spline, 110x15mm Boost front, 148x12mm Boost rear, Centerlock rotors
Front hub
DT Swiss M-1900 Spline, 110x15mm Boost front, 148x12mm Boost rear, Centerlock rotors

Geometry

Size SM MD LG XL
a
Seat tube length
393,0
432,0
470,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
556,0
583,0
605,0
630,0
d
Head tube length
110,0
120,0
130,0
145,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
113,0
114,0
113,0
-
h
Wheelbase
1114,0
1142,0
1166,0
-
i
Chainstay length
418,0
418,0
418,0
418,0
j
Bottom bracket drop
13,0
13,0
13,0
13,0
k
Stack height
578,0
588,0
597,0
610,0
l
Reach
399,0
424,0
443,0
465,0
m
Standover height
706,0
734,0
761,0
778,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
696,0
724,0
748,0
-
