Orbea OCCAM M-LTD 2021

MTB Trail
Groupset
Shimano XTR
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

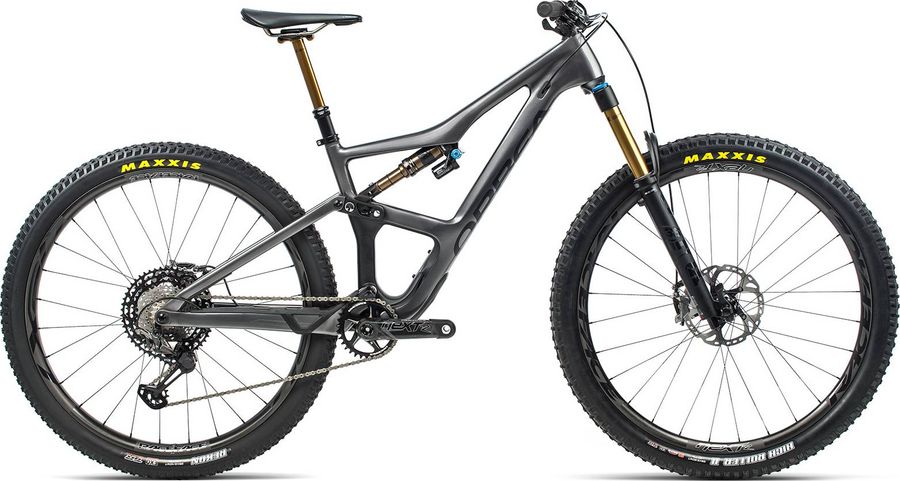

Orbea OCCAM M-LTD 2021

About the Orbea OCCAM M-LTD 2021

The Orbea OCCAM M-LTD 2021 is a Full suspension Trail Mountain Bike. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea OCCAM M-LTD 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Turbine R 35mm interface
Saddle
Fizik Taiga Kium rail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Fox Transfer Factory Kashima Dropper 31.6
Handlebar
Race Face Next R 35 20mm Rise 780mm
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next-R 32t
Shifter
Shimano XTR M9100
Chain guide
Orbea OC chainguide
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Orbea Occam OMR 140mm travel 29" C-Boost 12x148
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Race Face NEXT-R31 TLR 15/110mm IS
Tires
Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
419,0
457,0
508,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
c
Top tube length
563,0
590,0
617,0
647,0
d
Head tube length
95,0
105,0
120,0
140,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
119,0
119,0
119,0
119,0
h
Wheelbase
1163,0
1192,0
1222,0
1257,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
602,0
611,0
625,0
644,0
l
Reach
423,0
448,0
472,0
498,0
m
Standover height
708,0
734,0
764,0
774,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
727,0
756,0
786,0
821,0
