Orbea OCCAM M30 2021

MTB Trail
Groupset
Shimano XT
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

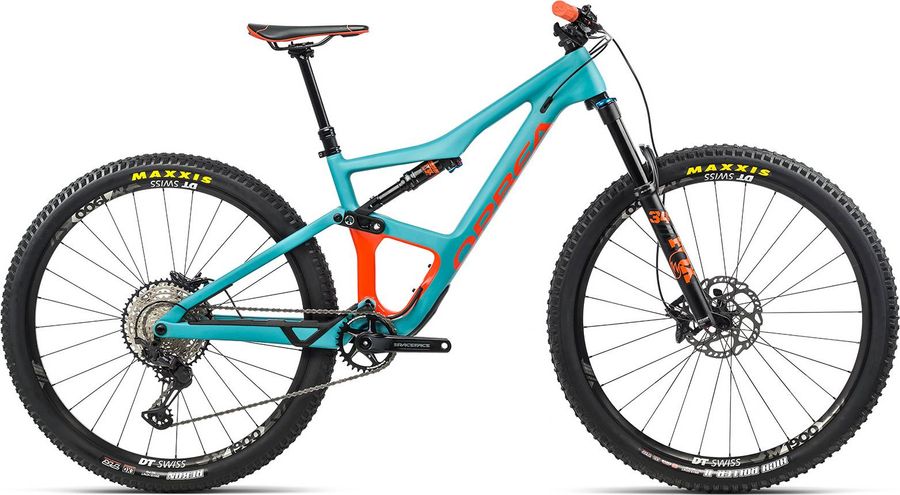

Orbea OCCAM M30 2021

About the Orbea OCCAM M30 2021

The Orbea OCCAM M30 2021 is a Full suspension Trail Mountain Bike. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea OCCAM M30 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
OC1 3D Forged 35mm interface 7º
Saddle
Fizik Taiga S-alloy rail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
OC2 Dropper 31.6mm
Handlebar
OC1 35mm 12mm Rise 780mm
Brakes
Shimano BR-M6120 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M6120
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D02S Metal
Pad standard
D03S Resin
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Race Face Aeffect 32t
Shifter
Shimano SLX M7100 I-Spec EV
Chain guide
Orbea OC chainguide
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Orbea Occam OMR 140mm travel 29" C-Boost 12x148
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
DT Swiss M-1900 Spline 30c TLR 15/110mm CL
Tires
Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
419,0
457,0
508,0
b
Seat tube angle
77,0º
77,0º
77,0º
77,0º
c
Top tube length
563,0
590,0
617,0
647,0
d
Head tube length
95,0
105,0
120,0
140,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
119,0
119,0
119,0
119,0
h
Wheelbase
1163,0
1192,0
1222,0
1257,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
602,0
611,0
625,0
644,0
l
Reach
423,0
448,0
472,0
498,0
m
Standover height
708,0
734,0
764,0
774,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
727,0
756,0
786,0
821,0
