Orbea Occam TR H20-Plus 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

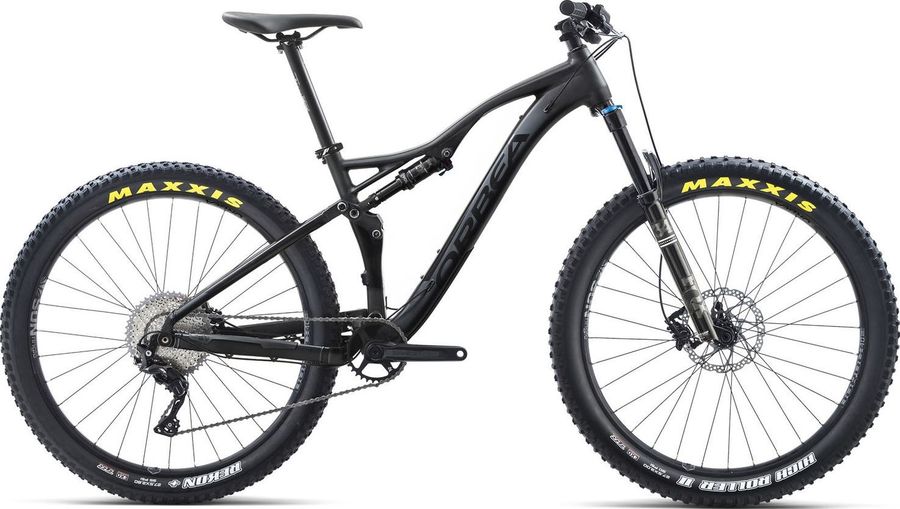

Orbea Occam TR H20-Plus 2018

About the Orbea Occam TR H20-Plus 2018

The Orbea Occam TR H20-Plus 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea Occam TR H20-Plus 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Aeffect R, 35mm interface
Saddle
Selle Royal 2062 Trail Custom
Headset
FSA Integrated
Seatpost
Race Face Aeffect Dropper, 385mm length, 125mm travel
Handlebar
Race Face Aeffect, 35mm clamp, 10mm rise, 760mm width
Brake lever
Shimano MT500 Hydraulic
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Aeffect Cinch
Shifter
Shimano SLX M7000 I-Spec
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Sunrace MX8 11-46T 11-speed
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Aluminum
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Sun Ringl? Duroc TR40 TLR+, Modus
Tires
Maxxis Rekon+ 27.5" x 2.8" TLR, 60 tpi, Exo
Rear hub
Sun Ringl? Duroc TR40, Modus, sealed, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Sun Ringl? Duroc TR40, Modus, sealed, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size SM MD LG XL
a
Seat tube length
393,0
432,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
592,0
614,0
640,0
d
Head tube length
105,0
115,0
125,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1115,0
1143,0
1166,0
1194,0
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-
-
-
-
k
Stack height
589,0
599,0
608,0
622,0
l
Reach
399,0
424,0
443,0
465,0
m
Standover height
718,0
724,0
791,0
775,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
