Orbea OCCAM TR H30 2018

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

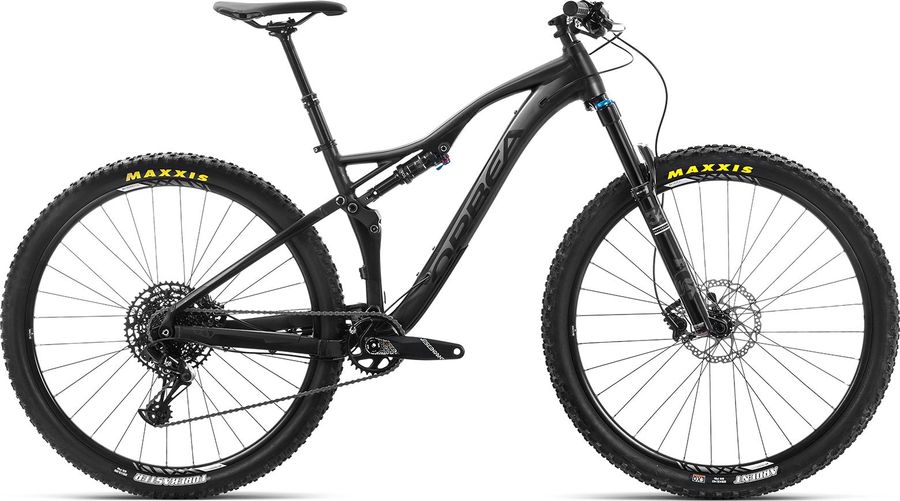

Orbea OCCAM TR H30 2018

About the Orbea OCCAM TR H30 2018

The Orbea OCCAM TR H30 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea OCCAM TR H30 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Race Face Ride
Saddle
Selle Royal Custom Trail II 2043 HRN
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Handlebar
Orbea OC-II Flat 760mm
Brake lever
Shimano MT500 Hydraulic
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Descendant CNC Eagle Dub Boost 32t
Shifter
SRAM NX Eagle
Front derailleur
Shimano SLX M7020, Direct Mount
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Orbea Occam TR 2018 Hydro Triple Butted 120mm travel 29/27.5+ C-Boost 12x148 PF
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
Mach1 Klixx 23c Tubeless Ready
Tires
Maxxis Forekaster 2.35" 60 TPI FB Dual
Rear hub
Mach1 Klixx, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Mach1 Klixx, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size SM MD LG XL
a
Seat tube length
393,0
432,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
592,0
614,0
640,0
d
Head tube length
105,0
115,0
125,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
106,0
107,0
106,0
106,0
h
Wheelbase
1115,0
1143,0
1166,0
1194,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
589,0
599,0
608,0
622,0
l
Reach
399,0
424,0
443,0
465,0
m
Standover height
718,0
736,0
762,0
775,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
689,0
717,0
740,0
768,0
