Orbea OCCAM TR M10 2019

MTB Trail
Groupset
SRAM X01 Eagle
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

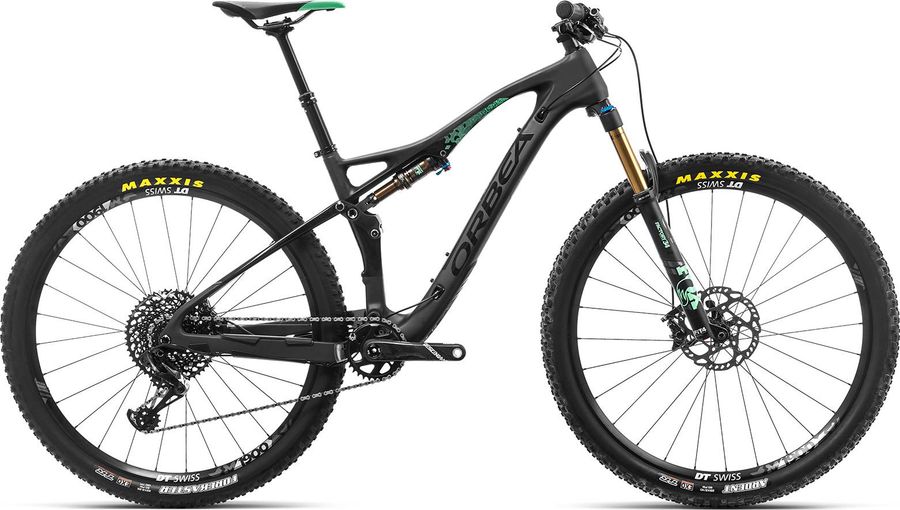

Orbea OCCAM TR M10 2019

About the Orbea OCCAM TR M10 2019

The Orbea OCCAM TR M10 2019 is a Full suspension Trail Mountain Bike. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Orbea OCCAM TR M10 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Aeffect R 35mm interface
Saddle
Selle Italia XR Trail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Handlebar
Race Face Aeffect 35 10mm Rise 760mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM Descendant Carbon Eagle Dub Boost 32t
Shifter
SRAM GX Eagle
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Orbea Occam TR 2018 OMR 120mm travel UFO 29/27.5+ Boost 12x148 PF
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT M-1900 Spline 25c TLR 15/110mm CL
Tires
Maxxis Forekaster 2.35" 120 TPI TLR Dual Exo

Geometry

Size SM MD LG XL
a
Seat tube length
393,0
432,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
592,0
614,0
640,0
d
Head tube length
105,0
115,0
125,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
106,0
107,0
106,0
106,0
h
Wheelbase
1115,0
1143,0
1166,0
1194,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
589,0
599,0
608,0
622,0
l
Reach
399,0
424,0
443,0
465,0
m
Standover height
718,0
736,0
762,0
775,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
689,0
717,0
740,0
768,0
