Orbea OIZ H10 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

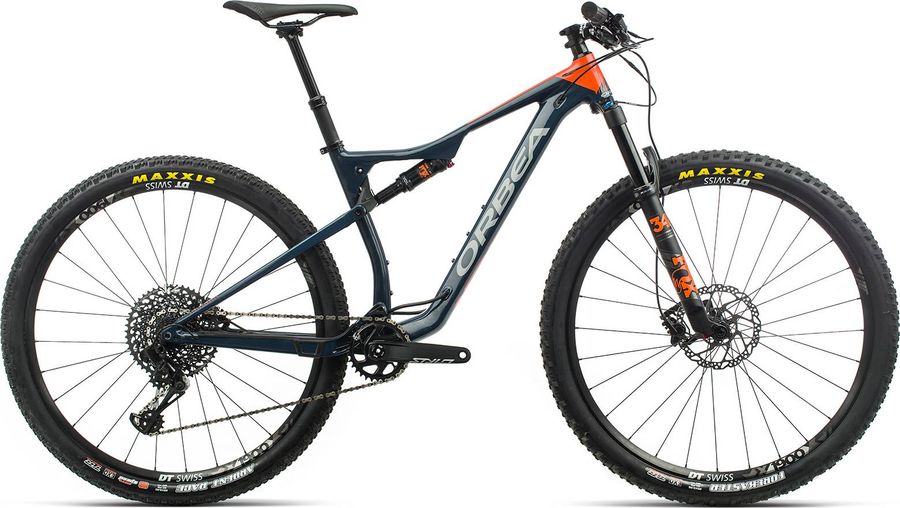

Orbea OIZ H10 2020

About the Orbea OIZ H10 2020

The Orbea OIZ H10 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Orbea OIZ H10 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Race Face Ride
Saddle
Selle Italia SL X-Cross Flow
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
OC2 Dropper 31.6mm 125mm travel
Handlebar
OC1 Flat 31.8mm 740mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM Stylo 6K Eagle Dub Boost 32t
Shifter
SRAM GX Eagle
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Orbea Oiz Hydro High Polished 2020 Alloy link Boost PF Taper UFO2 I-Line
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
DT Swiss X-1900 Spline 25c TLR 15/110mm CL
Tires
Maxxis Ardent 2.2" FB Dual Exo TR

Geometry

Size SM SM MD MD LG LG XL XL
a
Seat tube length
405,0
405,0
432,0
432,0
470,0
470,0
520,0
520,0
b
Seat tube angle
75,0º
74,0º
75,0º
74,0º
74,0º
75,0º
75,0º
74,0º
c
Top tube length
569,0
572,0
598,0
601,0
615,0
622,0
646,0
648,0
d
Head tube length
90,0
90,0
95,0
95,0
105,0
105,0
120,0
120,0
e
Head tube angle
69,0º
68,0º
69,0º
68,0º
68,0º
69,0º
69,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
97,0
94,0
97,0
104,0
105,0
97,0
97,0
105,0
h
Wheelbase
1099,0
1106,0
1128,0
1136,0
1160,0
1153,0
1178,0
1186,0
i
Chainstay length
440,0
440,0
440,0
440,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
47,0
40,0
47,0
40,0
40,0
47,0
47,0
40,0
k
Stack height
591,0
598,0
596,0
603,0
613,0
605,0
619,0
627,0
l
Reach
412,0
392,0
440,0
430,0
451,0
461,0
481,0
471,0
m
Standover height
727,0
729,0
737,0
744,0
754,0
747,0
754,0
761,0
x
Bottom bracket height
327,0
334,0
327,0
334,0
334,0
327,0
327,0
334,0
y
Front center
663,0
669,0
692,0
699,0
723,0
717,0
742,0
749,0
