Orbea OIZ H10 TR 2022

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

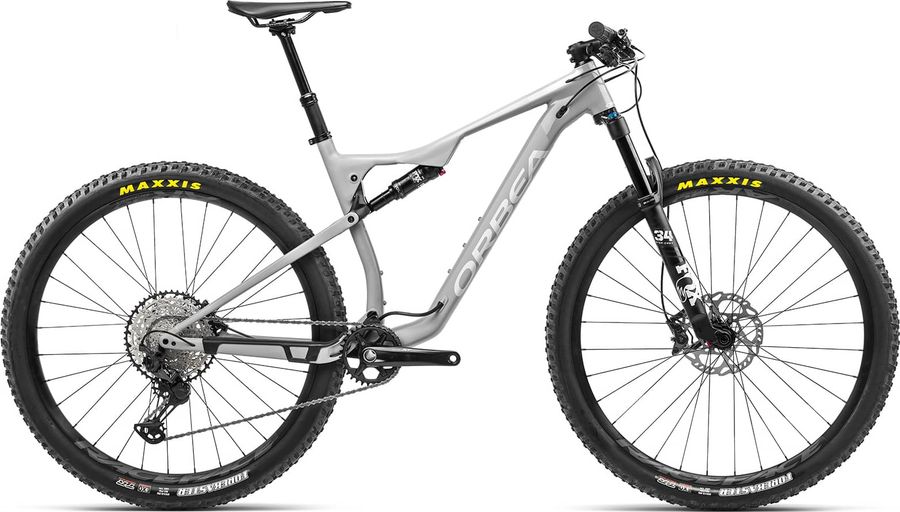

Orbea OIZ H10 TR 2022

About the Orbea OIZ H10 TR 2022

The Orbea OIZ H10 TR 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Orbea OIZ H10 TR 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
OC1 31.8mm interface -7º
Saddle
Fizik Taiga S-alloy rail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
OC2 Dropper 31.6mm 125mm travel
Handlebar
OC1 Flat 31.8mm 740mm
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano XT M8100 32t
Shifter
Shimano XT M8100 I-Spec EV
Chain guide
Orbea OC chainguide
Bottom bracket
BSA, 73mm, threaded
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Orbea Oiz Hydro High Polished, Alloy link, Boost, PF BB, UFO2, I-Line shock
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
Race Face AR 30c Tubeless Ready
Tires
Maxxis Forekaster 2.35" FB 120 TPI Dual Exo

Geometry

Size SM-XC SM-TR MD-XC MD-TR LG-TR LG-XC XL-XC XL-TR
a
Seat tube length
405,0
405,0
432,0
432,0
470,0
470,0
520,0
520,0
b
Seat tube angle
75,0º
74,0º
75,0º
74,0º
74,0º
75,0º
75,0º
74,0º
c
Top tube length
569,0
572,0
598,0
601,0
615,0
622,0
646,0
648,0
d
Head tube length
90,0
90,0
95,0
95,0
105,0
105,0
120,0
120,0
e
Head tube angle
69,0º
68,0º
69,0º
68,0º
68,0º
69,0º
69,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
89,0
86,0
97,0
104,0
105,0
97,0
97,0
105,0
h
Wheelbase
1099,0
1106,0
1128,0
1136,0
1160,0
1153,0
1178,0
1186,0
i
Chainstay length
440,0
440,0
440,0
440,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
47,0
40,0
47,0
40,0
40,0
47,0
47,0
40,0
k
Stack height
591,0
598,0
596,0
603,0
613,0
605,0
619,0
627,0
l
Reach
412,0
392,0
440,0
430,0
451,0
461,0
481,0
471,0
m
Standover height
727,0
729,0
737,0
744,0
754,0
747,0
754,0
761,0
x
Bottom bracket height
327,0
334,0
327,0
334,0
334,0
327,0
327,0
334,0
y
Front center
663,0
669,0
692,0
699,0
723,0
717,0
742,0
749,0
