Orbea OIZ H30 27.5 2020

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

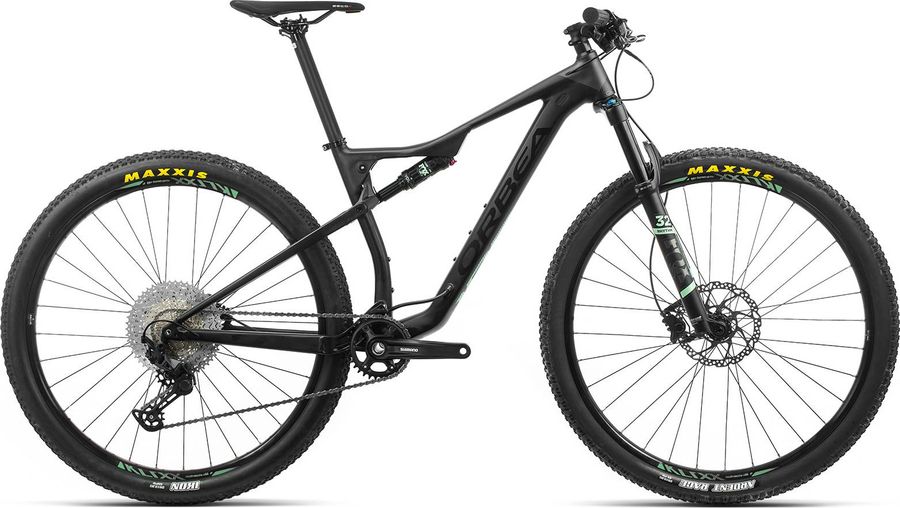

Orbea OIZ H30 27.5 2020

About the Orbea OIZ H30 27.5 2020

The Orbea OIZ H30 27.5 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Orbea OIZ H30 27.5 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Alloy 31.8mm interface 7º
Saddle
Selle Royal Seta Sport
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Alloy 31.6x400mm Offset 0
Handlebar
OC1 Flat 31.8mm 740mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano MT610 32t
Shifter
Shimano SLX M7100
Cassette
Sunrace 12-speed
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Orbea Oiz Hydro High Polished 2020 Alloy link Boost PF Taper UFO2 I-Line
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
Mach1 Maxx 25c Tubeless Ready
Tires
Maxxis Ikon 2.20" FB 60 TPI Dual

Geometry

Size SM SM
a
Seat tube length
405,0
405,0
b
Seat tube angle
75,0º
74,0º
c
Top tube length
562,0
564,0
d
Head tube length
95,0
95,0
e
Head tube angle
69,0º
68,0º
f
Rake
44,0
44,0
g
Trail
89,0
97,0
h
Wheelbase
1086,0
1093,0
i
Chainstay length
430,0
430,0
j
Bottom bracket drop
29,0
21,0
k
Stack height
563,0
570,0
l
Reach
412,0
402,0
m
Standover height
720,0
727,0
x
Bottom bracket height
328,0
336,0
y
Front center
658,0
664,0
