Orbea OIZ M-LTD 2019

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
100mm

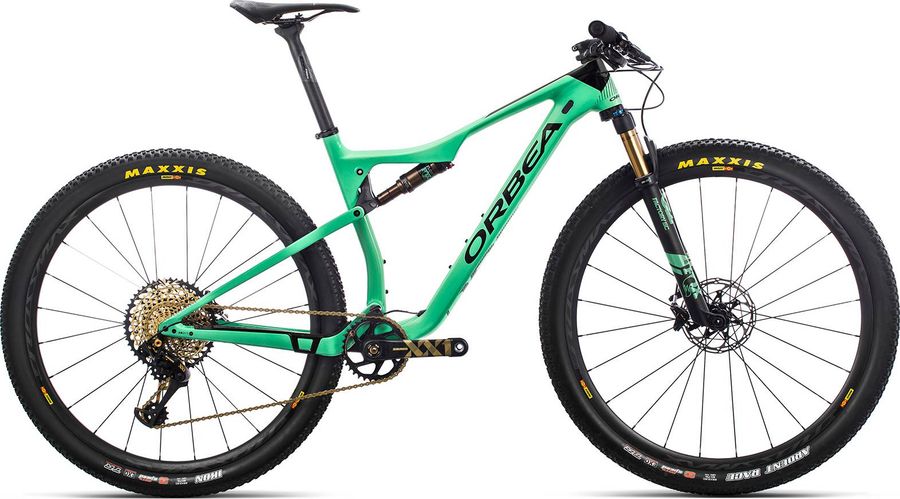

Orbea OIZ M-LTD 2019

About the Orbea OIZ M-LTD 2019

The Orbea OIZ M-LTD 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Orbea OIZ M-LTD 2019 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
FSA K-Force
Saddle
Selle Italia X-LR Kit Carbonio S
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
FSA K-Force Light SB0 31.6x400mm Di2 compatible
Handlebar
FSA K-Force Flat 760mm Di2 compatible
Brakes
SRAM Ultimate
Drivetrain
Crankset
SRAM XX1 Eagle Dub Gold Boost 34t
Shifter
SRAM XX1 Eagle Gold
Cassette
SRAM XX1 XG1299 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Orbea Oiz Carbon OMR 2019 Boost PF Taper UFO2 I-Line
Front suspension
Fox 32 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Mavic Crossmax Pro Carbon TL 6-Bolt
Tires
Maxxis Ardent 2.2" TLR Exo Dual
Rear hub
Fox Kabolt Boost

Geometry

Size SM SM MD LG XL SM SM MD LG XL
a
Seat tube length
405,0
405,0
432,0
470,0
520,0
405,0
405,0
432,0
470,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
557,0
564,0
593,0
617,0
641,0
559,0
567,0
596,0
619,0
643,0
d
Head tube length
95,0
90,0
95,0
105,0
120,0
95,0
90,0
95,0
105,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
89,0
89,0
89,0
89,0
89,0
97,0
86,0
96,0
97,0
97,0
h
Wheelbase
1081,0
1094,0
1123,0
1148,0
1173,0
1088,0
1101,0
1131,0
1155,0
1181,0
i
Chainstay length
425,0
435,0
435,0
435,0
435,0
425,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
29,0
47,0
47,0
47,0
47,0
21,0
40,0
40,0
40,0
40,0
k
Stack height
558,0
586,0
591,0
600,0
614,0
565,0
593,0
598,0
608,0
622,0
l
Reach
407,0
407,0
435,0
456,0
476,0
397,0
387,0
425,0
446,0
466,0
m
Standover height
715,0
717,0
732,0
742,0
749,0
722,0
724,0
739,0
749,0
756,0
x
Bottom bracket height
328,0
327,0
327,0
327,0
327,0
336,0
334,0
334,0
334,0
334,0
y
Front center
658,0
663,0
692,0
717,0
742,0
664,0
669,0
699,0
723,0
749,0
