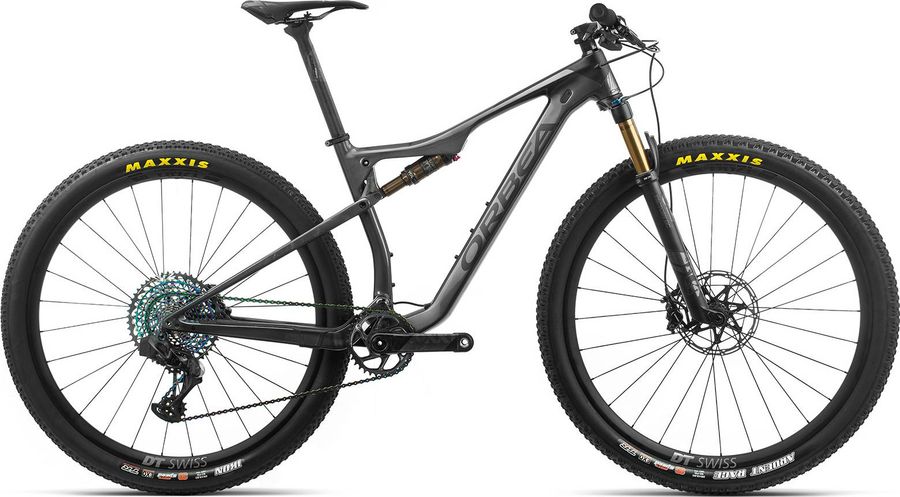

Orbea OIZ M-LTD 27.5 2020
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm
About the Orbea OIZ M-LTD 27.5 2020
The Orbea OIZ M-LTD 27.5 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Steam
|
FSA K-Force
|
|---|---|
|
Saddle
|
Selle Italia X-LR Kit Carbonio L
|
|
Battery
|
SRAM Powerpack
|
|
Headset
|
Acros Alloy 1-1/8 - 1-1/2" Integrated
|
|
Seatpost
|
FSA K-Force Light SB0 31.6x400mm Di2 compatible
|
|
Handlebar
|
FSA K-Force Flat 760mm Di2 compatible
|
|
Brakes
|
SRAM Ultimate
|
|
Crankset
|
SRAM XX1 Eagle Dub Grey Boost 34t
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle AXS
|
|
Chain
|
SRAM Eagle XX1 Rainbow
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle AXS
12s
|
|
|
|
|
Frame
|
Orbea Oiz Carbon OMR FiberLink Boost PF Taper UFO2 I-Line
|
|---|---|
|
Front suspension
|
Fox 32 Float Factory
|
|
Rear suspension
|
Fox Float DPS Factory
|
|
Rims
|
DT Swiss XRC-1200 Spline 25c TLR 15/110mm CL
|
|---|---|
|
Tires
|
Maxxis Ardent 2.2" FB Dual Exo TR
|
Geometry
| Size | SM | SM |
|---|---|---|
|
a
Seat tube length
|
405,0
|
405,0
|
|
b
Seat tube angle
|
75,0º
|
74,0º
|
|
c
Top tube length
|
562,0
|
564,0
|
|
d
Head tube length
|
95,0
|
95,0
|
|
e
Head tube angle
|
69,0º
|
68,0º
|
|
f
Rake
|
44,0
|
44,0
|
|
g
Trail
|
89,0
|
97,0
|
|
h
Wheelbase
|
1086,0
|
1093,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
29,0
|
21,0
|
|
k
Stack height
|
563,0
|
570,0
|
|
l
Reach
|
412,0
|
402,0
|
|
m
Standover height
|
720,0
|
727,0
|
|
x
Bottom bracket height
|
328,0
|
336,0
|
|
y
Front center
|
658,0
|
664,0
|
