Orbea OIZ M-TEAM 2019

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
100mm

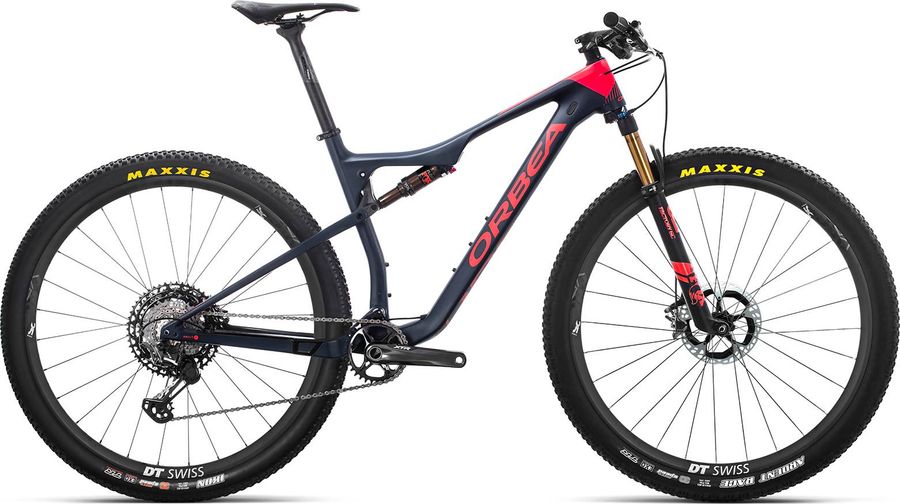

Orbea OIZ M-TEAM 2019

About the Orbea OIZ M-TEAM 2019

The Orbea OIZ M-TEAM 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Orbea OIZ M-TEAM 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
FSA K-Force
Saddle
Selle Italia X-LR Ti Flow
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
FSA K-Force Light SB0 31.6x400mm Di2 compatible
Handlebar
FSA K-Force Flat 760mm Di2 compatible
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR M9100 34t
Shifter
Shimano XTR M9100
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Orbea Oiz Carbon OMR 2019 Boost PF Taper UFO2 I-Line
Front suspension
Fox 32 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT XRC-1200 Spline TLR F-15/110mm R-12/148mm CL (Center Lock) ASL12 (Shimano Microspline 12s)
Tires
Maxxis Ardent 2.2" TLR Exo Dual

Geometry

Size SM SM MD LG XL SM SM MD LG XL
a
Seat tube length
405,0
405,0
432,0
470,0
520,0
405,0
405,0
432,0
470,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
557,0
564,0
593,0
617,0
641,0
559,0
567,0
596,0
619,0
643,0
d
Head tube length
95,0
90,0
95,0
105,0
120,0
95,0
90,0
95,0
105,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
g
Trail
89,0
89,0
89,0
89,0
89,0
97,0
86,0
96,0
97,0
97,0
h
Wheelbase
1081,0
1094,0
1123,0
1148,0
1173,0
1088,0
1101,0
1131,0
1155,0
1181,0
i
Chainstay length
425,0
435,0
435,0
435,0
435,0
425,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
29,0
47,0
47,0
47,0
47,0
21,0
40,0
40,0
40,0
40,0
k
Stack height
558,0
586,0
591,0
600,0
614,0
565,0
593,0
598,0
608,0
622,0
l
Reach
407,0
407,0
435,0
456,0
476,0
397,0
387,0
425,0
446,0
466,0
m
Standover height
715,0
717,0
732,0
742,0
749,0
722,0
724,0
739,0
749,0
756,0
x
Bottom bracket height
328,0
327,0
327,0
327,0
327,0
336,0
334,0
334,0
334,0
334,0
y
Front center
658,0
663,0
692,0
717,0
742,0
664,0
669,0
699,0
723,0
749,0
