Orbea OIZ M10 27.5 2020

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

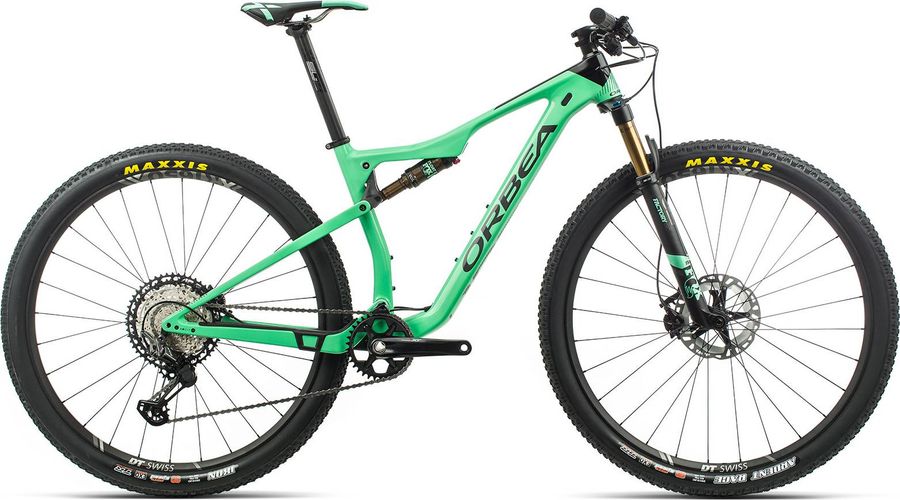

Orbea OIZ M10 27.5 2020

About the Orbea OIZ M10 27.5 2020

The Orbea OIZ M10 27.5 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Orbea OIZ M10 27.5 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
FSA SL-K
Saddle
Selle Italia X-LR Ti Flow
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
FSA SL-K SB0 31.6x400mm Di2 compatible
Handlebar
FSA SL-K Flat 740mm
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano XT M8120 34t
Shifter
Shimano XT M8100 I-Spec EV
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Orbea Oiz Carbon OMR FiberLink Boost PF Taper UFO2 I-Line
Front suspension
Fox 32 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XR-1650 Spline 25c TLR CL, Star Ratchet, Boost
Tires
Maxxis Ardent 2.2" FB Dual Exo TR

Geometry

Size SM SM
a
Seat tube length
405,0
405,0
b
Seat tube angle
75,0º
74,0º
c
Top tube length
562,0
564,0
d
Head tube length
95,0
95,0
e
Head tube angle
69,0º
68,0º
f
Rake
44,0
44,0
g
Trail
89,0
97,0
h
Wheelbase
1086,0
1093,0
i
Chainstay length
430,0
430,0
j
Bottom bracket drop
29,0
21,0
k
Stack height
563,0
570,0
l
Reach
412,0
402,0
m
Standover height
720,0
727,0
x
Bottom bracket height
328,0
336,0
y
Front center
658,0
664,0
