Orbea OIZ M10-TR 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm

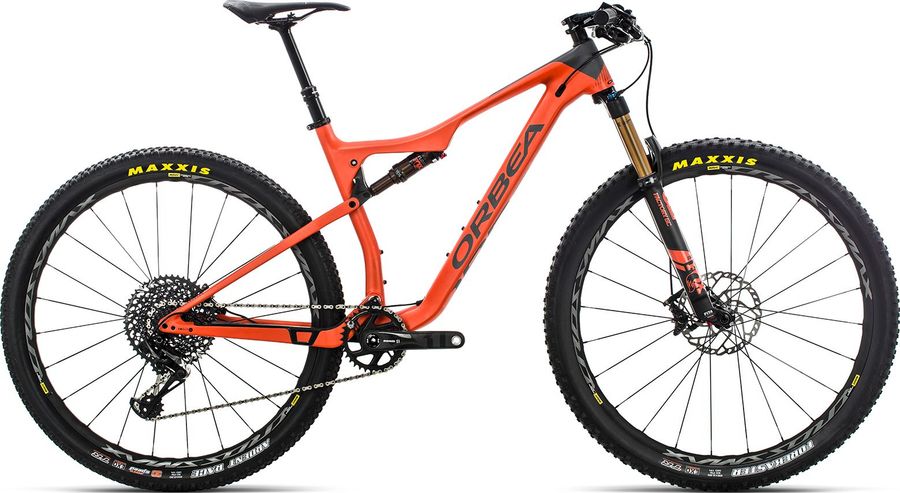

Orbea OIZ M10-TR 2018

About the Orbea OIZ M10-TR 2018

The Orbea OIZ M10-TR 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Orbea OIZ M10-TR 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
FSA SL-K
Saddle
Selle Italia X-LR Ti Flow Selle Italia X-LR Kit Carbonio S
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm
Handlebar
FSA SL-K Flat 740mm FSA K-Force Flat 760mm Kit (Bar+Stem)
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM X1 Eagle Dub Carbon Boost 34t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
Shifter
SRAM GX Eagle
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Orbea Oiz Carbon OMR 2019 Boost PF Taper UFO2 I-Line
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 34 Float Factory Kashima
Wheels
Rims
Mavic Crossmax Elite TL 6-Bolt Mavic Crossmax Pro Carbon TL 6-Bolt
Tires
Maxxis Ardent 2.2" TLR Exo Dual

Geometry

Size SM SM MD LG XL
a
Seat tube length
405,0
405,0
432,0
470,0
520,0
b
Seat tube angle
75,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
562,0
569,0
598,0
622,0
646,0
d
Head tube length
95,0
90,0
95,0
105,0
120,0
e
Head tube angle
69,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
89,0
110,0
111,0
111,0
111,0
h
Wheelbase
1086,0
1099,0
1128,0
1153,0
1178,0
i
Chainstay length
430,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
29,0
40,0
40,0
40,0
40,0
k
Stack height
563,0
591,0
596,0
605,0
619,0
l
Reach
412,0
412,0
440,0
461,0
481,0
m
Standover height
722,0
722,0
737,0
747,0
754,0
x
Bottom bracket height
328,0
327,0
327,0
327,0
327,0
y
Front center
658,0
662,0
691,0
716,0
741,0
