Orbea RALLON M-LTD 2022

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

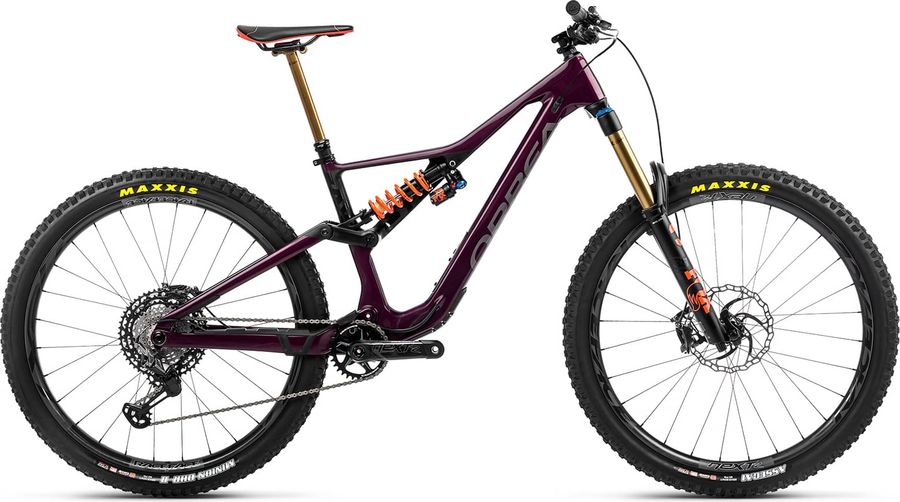

Orbea RALLON M-LTD 2022

About the Orbea RALLON M-LTD 2022

The Orbea RALLON M-LTD 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Orbea RALLON M-LTD 2022 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Turbine R 35mm interface
Saddle
Fizik Taiga Kium rail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Fox Transfer Factory Kashima Dropper 31.6
Handlebar
Race Face Next R 35 20mm Rise 800mm
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next-R 32t
Shifter
Shimano XTR M9100
Chain guide
e*thirteen CL52 30-36t black
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Front suspension
Fox 38 Float Factory Kashima
Rear suspension
Fox Float DPX2 Factory
Wheels
Rims
Race Face NEXT-R31 TLR 15/110mm IS
Tires
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR

Geometry

Size SM SM LG MD LG LG XL XL
a
Seat tube length
415,0
415,0
415,0
415,0
435,0
435,0
460,0
460,0
b
Seat tube angle
77,5º
77,0º
77,5º
77,0º
77,5º
77,0º
77,5º
77,0º
c
Top tube length
570,0
571,0
597,0
598,0
624,0
625,0
651,0
653,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
120,0
120,0
e
Head tube angle
64,5º
64,0º
64,5º
64,0º
64,5º
64,0º
64,5º
64,0º
f
Rake
42,0
43,0
41,0
42,0
41,0
43,0
42,0
43,0
g
Trail
132,0
135,0
133,0
136,0
133,0
135,0
132,0
135,0
h
Wheelbase
1,2e3
1199,0
1229,0
1228,0
1258,0
1258,0
1288,0
1287,0
i
Chainstay length
438,0
436,0
438,0
436,0
438,0
436,0
438,0
436,0
j
Bottom bracket drop
28,0
35,0
28,0
35,0
28,0
35,0
28,0
35,0
k
Stack height
617,0
621,0
626,0
630,0
635,0
639,0
644,0
648,0
l
Reach
433,0
428,0
458,0
453,0
483,0
478,0
508,0
503,0
m
Standover height
735,0
742,0
735,0
742,0
752,0
759,0
772,0
779,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
343,0
343,0
343,0
343,0
y
Front center
763,0
765,0
792,0
794,0
821,0
824,0
851,0
853,0
