Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,5 kg
Front travel
160mm
Rear travel
150mm

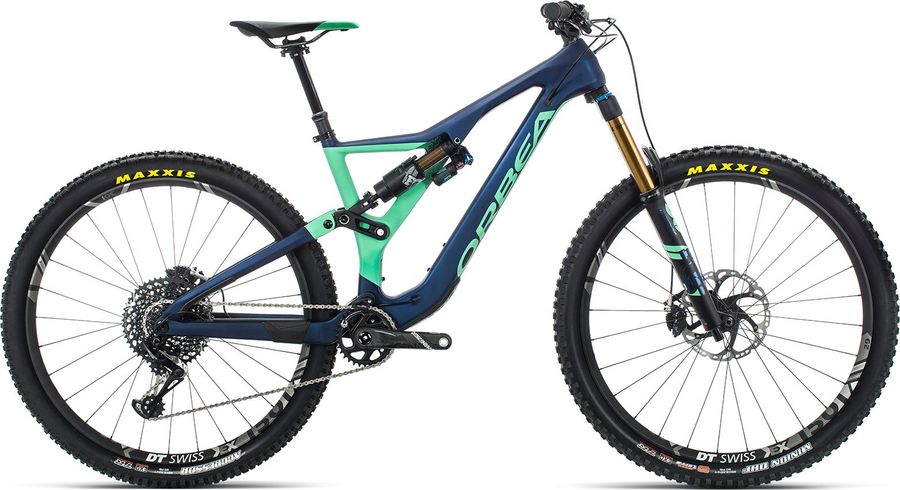

About the Orbea RALLON M-TEAM 2018
The Orbea RALLON M-TEAM 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 12,5 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Race Face Love Handle Lock-on
|
|---|
|
Steam
|
Race Face Turbine R 35mm interface
|
|---|---|
|
Saddle
|
Selle Italia XR Trail Selle Italia X-LR Ti Flow
|
|
Headset
|
Acros Alloy 1-1/8 - 1-1/2" Integrated
|
|
Seatpost
|
Crank brothers Highline 31.6x425/150mm Race Face Aeffect Dropper 31.6x385/125mm Crank brothers Highline 31.6x465/170mm
|
|
Handlebar
|
Race Face Next R 35 20mm Rise 800mm
|
|
Brake lever
|
SRAM Guide RSC
|
|
Brakes
|
Shimano Deore XT BR-M8020
Hydraulic disc brake
4 piston
|
|
D03S Resin H03A Resin SM-RT99 RT-EM810 RT-EM910 |
|
|
Crankset
|
SRAM Descendant Carbon Eagle Dub Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA) Rotor QX1 DM SRAM 34t Chainring (EXTRA)
|
|---|---|
|
Shifter
|
SRAM X01 Eagle
|
|
Chain guide
|
OneUp Components ISCG05 Guide
|
|
Bottom bracket
|
Threaded
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Orbea Monocoque Race Carbon. Advanced Dynamics 150mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
DT E-1501 Spline 30c TLR 15/110mm IS (6-bolt) ENVE M730 DT 240 TL 15/110mm (6-bolt) TL
|
|---|---|
|
Tires
|
Maxxis Aggressor 2.50" 60 TPI Exo TLR
|
|
Spokes
|
DT Swiss Competition, straightpull
|
|
Rear hub
|
DT Swiss Spline One, 36-tooth ratchet
|
|
Front hub
|
DT Swiss Spline One, 36-tooth ratchet
|
Geometry
| Size | SM | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
406,0
|
444,0
|
483,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
589,0
|
617,0
|
650,0
|
|
d
Head tube length
|
100,0
|
110,0
|
125,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
116,0
|
115,0
|
115,0
|
|
h
Wheelbase
|
1193,0
|
1223,0
|
1259,0
|
|
i
Chainstay length
|
441,0
|
441,0
|
441,0
|
|
j
Bottom bracket drop
|
28,0
|
28,0
|
28,0
|
|
k
Stack height
|
621,0
|
630,0
|
643,0
|
|
l
Reach
|
436,0
|
461,0
|
491,0
|
|
m
Standover height
|
743,0
|
773,0
|
787,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
753,0
|
783,0
|
819,0
|
