Orbea RALLON M-TEAM 2019

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

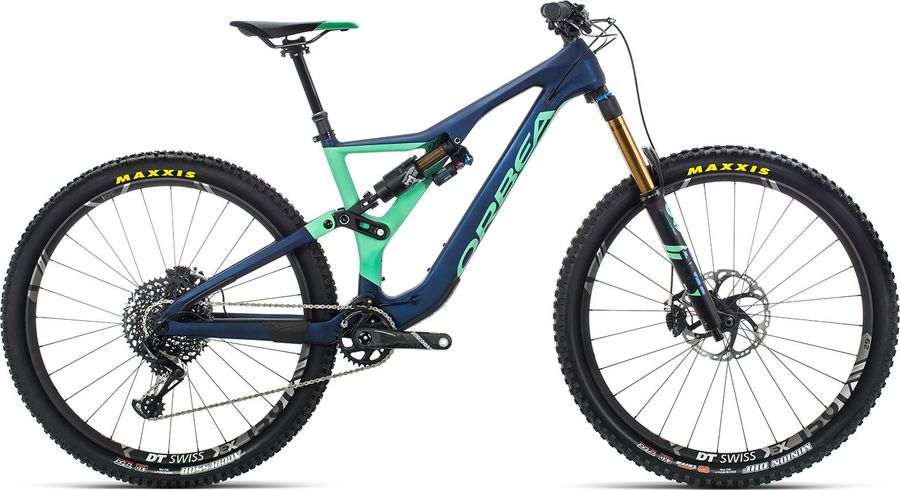

Orbea RALLON M-TEAM 2019

About the Orbea RALLON M-TEAM 2019

The Orbea RALLON M-TEAM 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Orbea RALLON M-TEAM 2019 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Turbine R 35mm interface
Saddle
Selle Italia XR Trail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Crank brothers Highline 31.6x425/150mm
Handlebar
Race Face Next R 35 20mm Rise 800mm
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
SRAM Descendant Carbon Eagle Dub Boost 32t
Shifter
SRAM X01 Eagle
Chain guide
OneUp Components ISCG05 Guide
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Orbea Monocoque Race Carbon. Advanced Dynamics 150mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
DT E-1501 Spline 30c TLR 15/110mm IS (6-bolt)
Tires
Maxxis Aggressor 2.50" 60 TPI Exo TLR

Geometry

Size SM LG XL
a
Seat tube length
406,0
444,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
589,0
617,0
650,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,5º
65,5º
65,5º
f
Rake
44,0
44,0
44,0
g
Trail
116,0
115,0
115,0
h
Wheelbase
1193,0
1223,0
1259,0
i
Chainstay length
441,0
441,0
441,0
j
Bottom bracket drop
28,0
28,0
28,0
k
Stack height
621,0
630,0
643,0
l
Reach
436,0
461,0
491,0
m
Standover height
743,0
773,0
787,0
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
753,0
783,0
819,0
