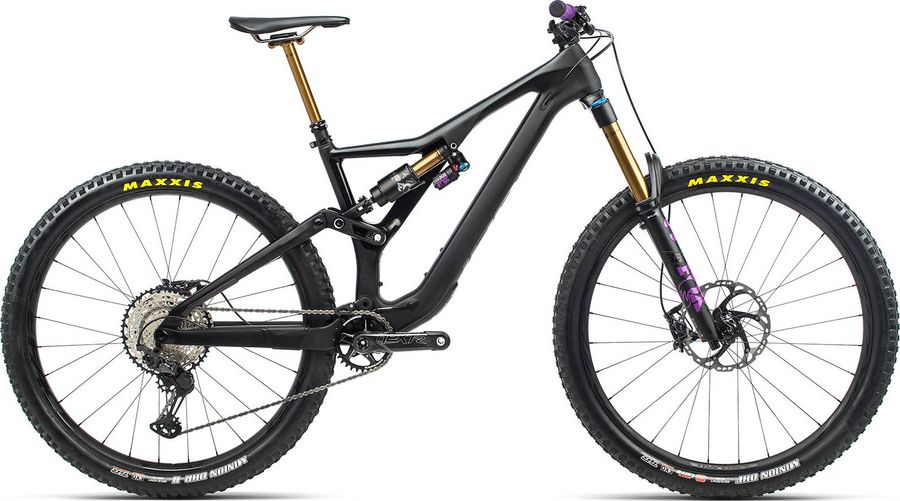

Orbea RALLON M TEAM 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm
Orbea RALLON M TEAM 2021

About the Orbea RALLON M TEAM 2021

The Orbea RALLON M TEAM 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Orbea RALLON M TEAM 2021 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Aeffect R 35mm interface
Saddle
Fizik Taiga Kium rail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
Fox Transfer Factory Kashima Dropper 31.6
Handlebar
Race Face Next R 35 20mm Rise 800mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Race Face Next-R 32t
Shifter
Shimano XT M8100 I-Spec EV
Chain guide
OneUp Components ISCG05 Guide
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 38 Float Factory Kashima
Wheels
Rims
Race Face TURBINE-R30 TLR 15/110mm IS
Tires
Maxxis Minion DHR II 2.40" FB 60 TPI Dual Exo TR

Geometry

Size SM/MD LG XL
a
Seat tube length
406,0
444,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
589,0
617,0
650,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
g
Trail
128,0
127,0
127,0
h
Wheelbase
1193,0
1223,0
1259,0
i
Chainstay length
441,0
441,0
441,0
j
Bottom bracket drop
25,0
25,0
25,0
k
Stack height
624,0
633,0
646,0
l
Reach
436,0
461,0
491,0
m
Standover height
743,0
773,0
787,0
x
Bottom bracket height
346,0
346,0
346,0
y
Front center
753,0
783,0
819,0
