Orbea RALLON M10 2020

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

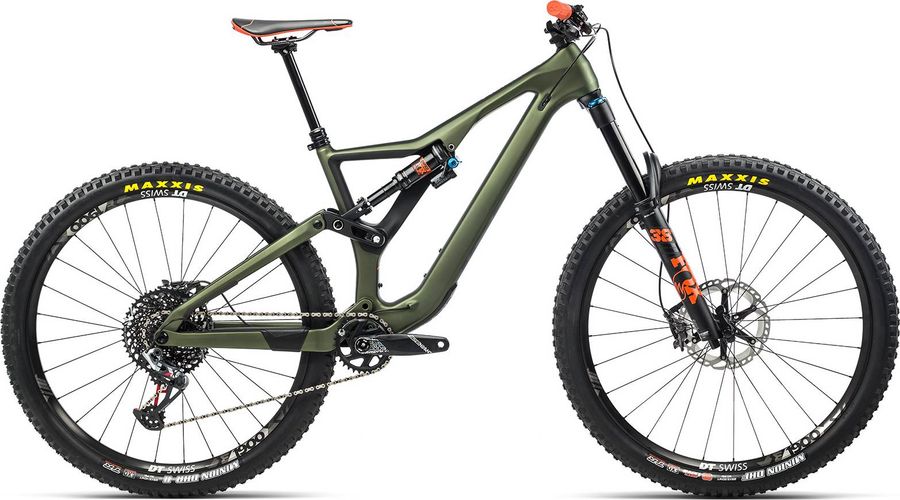

Orbea RALLON M10 2020

About the Orbea RALLON M10 2020

The Orbea RALLON M10 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Orbea RALLON M10 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Aeffect R 35mm interface
Saddle
Fizik Taiga S-alloy rail
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost
OC2 Dropper 31.6mm
Handlebar
Race Face Aeffect 35 20mm Rise 780mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
SRAM Descendant CNC Eagle Dub Boost 32t
Shifter
SRAM GX Eagle Lunar
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 38 Float Performance
Wheels
Rims
DT Swiss E-1900 Spline 30c TLR 15/110mm CL
Tires
Maxxis Minion DHR II 2.40" FB 60 TPI Dual Exo TR

Geometry

Size SM/MD LG XL
a
Seat tube length
406,0
444,0
483,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
589,0
617,0
650,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
g
Trail
128,0
127,0
127,0
h
Wheelbase
1193,0
1223,0
1259,0
i
Chainstay length
441,0
441,0
441,0
j
Bottom bracket drop
25,0
25,0
25,0
k
Stack height
624,0
633,0
646,0
l
Reach
436,0
461,0
491,0
m
Standover height
743,0
773,0
787,0
x
Bottom bracket height
346,0
346,0
346,0
y
Front center
753,0
783,0
819,0
