Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

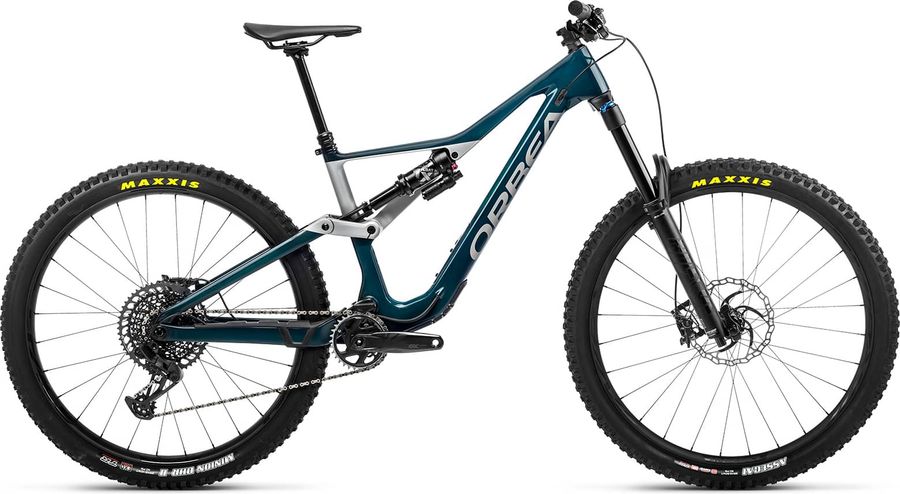

About the Orbea RALLON M10 2022
The Orbea RALLON M10 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
Race Face Aeffect R 35mm interface
|
|---|---|
|
Saddle
|
Fizik Taiga S-alloy rail
|
|
Headset
|
Acros Alloy 1-1/8 - 1-1/2" Integrated
|
|
Seatpost
|
OC2 Dropper 31.6mm
|
|
Handlebar
|
Race Face Aeffect 35 20mm Rise 780mm
|
|
Brakes
|
Shimano Deore XT BR-M8120
410 (BL-M8100) g
Hydraulic disc brake
4 piston
|
|
BL-T8100 |
|
|
Crankset
|
SRAM GX Eagle Dub Lunar Boost 32t
|
|---|---|
|
Shifter
|
SRAM GX Eagle Lunar
|
|
Chain guide
|
e*thirteen CL52 30-36t black
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
|
|---|---|
|
Rear suspension
|
Fox Float X Performance
|
|
Front suspension
|
Fox 38 Float Performance
|
|
Rims
|
Race Face TURBINE-R30 TLR 15/110mm IS
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR
|
Geometry
| Size | SM | SM | LG | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
415,0
|
415,0
|
415,0
|
415,0
|
435,0
|
435,0
|
460,0
|
460,0
|
|
b
Seat tube angle
|
77,5º
|
77,0º
|
77,5º
|
77,0º
|
77,5º
|
77,0º
|
77,5º
|
77,0º
|
|
c
Top tube length
|
570,0
|
571,0
|
597,0
|
598,0
|
624,0
|
625,0
|
651,0
|
653,0
|
|
d
Head tube length
|
90,0
|
90,0
|
100,0
|
100,0
|
110,0
|
110,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
64,5º
|
64,0º
|
64,5º
|
64,0º
|
64,5º
|
64,0º
|
64,5º
|
64,0º
|
|
f
Rake
|
42,0
|
43,0
|
41,0
|
42,0
|
41,0
|
43,0
|
42,0
|
43,0
|
|
g
Trail
|
132,0
|
135,0
|
133,0
|
136,0
|
133,0
|
135,0
|
132,0
|
135,0
|
|
h
Wheelbase
|
1,2e3
|
1199,0
|
1229,0
|
1228,0
|
1258,0
|
1258,0
|
1288,0
|
1287,0
|
|
i
Chainstay length
|
438,0
|
436,0
|
438,0
|
436,0
|
438,0
|
436,0
|
438,0
|
436,0
|
|
j
Bottom bracket drop
|
28,0
|
35,0
|
28,0
|
35,0
|
28,0
|
35,0
|
28,0
|
35,0
|
|
k
Stack height
|
617,0
|
621,0
|
626,0
|
630,0
|
635,0
|
639,0
|
644,0
|
648,0
|
|
l
Reach
|
433,0
|
428,0
|
458,0
|
453,0
|
483,0
|
478,0
|
508,0
|
503,0
|
|
m
Standover height
|
735,0
|
742,0
|
735,0
|
742,0
|
752,0
|
759,0
|
772,0
|
779,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
763,0
|
765,0
|
792,0
|
794,0
|
821,0
|
824,0
|
851,0
|
853,0
|
