Orbea Wild FS 10 USA 2018

E-Bike
MTB Trail
Groupset
SRAM EX1
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

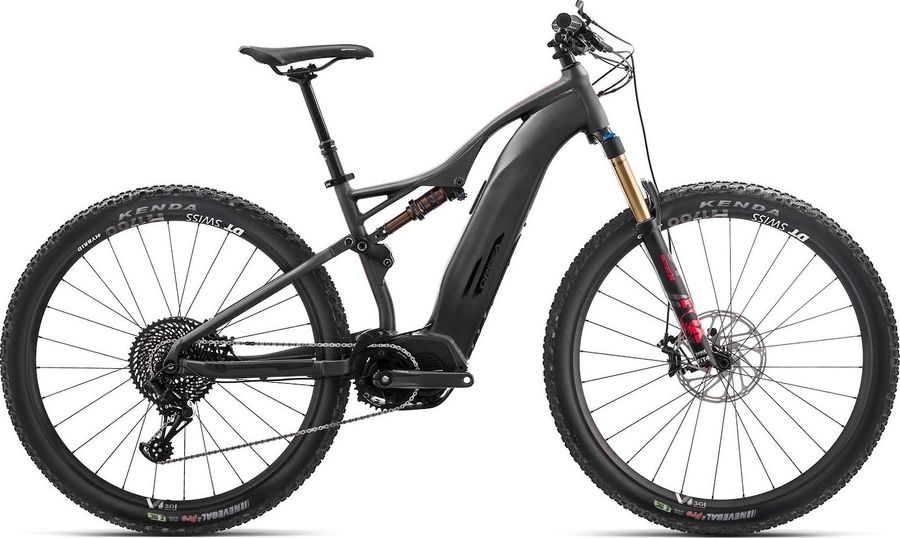

Orbea Wild FS 10 USA 2018

About the Orbea Wild FS 10 USA 2018

The Orbea Wild FS 10 USA 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM EX1 drivetrain of 8 gears (1x8). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Orbea Wild FS 10 USA 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
VP-536, black
Components
Steam
Race Face Ride 35mm interface
Saddle
fi'zi:k Gobi M7
Battery
Shimano Steps E8010 Litium-ion
Headset
FSA Integrated
Seatpost
Race Face Aeffect Dropper, 125mm drop
Handlebar
Race Face Ride 35, 20mm rise, 760mm width
Brake lever
Avid Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Shimano E80, 170mm length
Motor
Shimano Steps E8000
Shifter
SRAM EX1, 8-speed
Rear derailleur
SRAM EX1 X-HORIZON Rear Derailleur 8s
Cable pull ratio
1:1
Cage material
Aluminum
Color
Black
Max tooth
48
Model
RD-EX1-A1
Name
EX1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
8s
Cassette
SRAM XG-899 E-BLOCK Cassette 8s 320 g
Cog finish cassete
Black
Cog sizes
11-48t:11,13,15,18,24,32,40,48
Gearing
11-48t
Model
CS-XG-899-A1
Name
XG-899 E-BLOCK™ Cassette
Speed
8s
Technology cassete
XG
Weight
320
Chain
SRAM EX1 Chain
Chain connector
PowerLock
Chain length links
144 links
Color inner link
Grey
Color outer link
Grey
Compat speed
10s
Inner link finish
Polished
Model
CN-EX-1-A1
Name
EX1 Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Frameset
Frame
Aluminum
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
27.5+: DT Swiss H-1700 Spline 35c TLR, 29”: DT Swiss H-1700 Spline 30c TLR
Tires
27.5+: Kenda 1184A Havok, 2.8" 120TPI/TLR, eBike specific, 29”: Kenda 1184A Havok, 2.4" 60TPI/TLR, eBike specific
Spokes
DT Swiss
Rear hub
27.5+: DT Swiss H-1700 Spline 35c TLR, Boost front and rear, IS (6 bolt), 29”: DT Swiss H-1700 Spline 30c TLR, Boost front and rear, IS (6 bolt)
Front hub
27.5+: DT Swiss H-1700 Spline 35c TLR, Boost front and rear, IS (6 bolt), 29”: DT Swiss H-1700 Spline 30c TLR, Boost front and rear, IS (6 bolt)

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
470,0
510,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
550,0
569,0
598,0
627,0
d
Head tube length
125,0
140,0
155,0
170,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
44,0
44,0
44,0
45,0
g
Trail
103,0
103,0
103,0
102,0
h
Wheelbase
1133,0
1154,0
1185,0
1217,0
i
Chainstay length
457,0
457,0
457,0
457,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
637,0
651,0
665,0
679,0
l
Reach
382,0
397,0
422,0
447,0
m
Standover height
-
-
-
-
x
Bottom bracket height
325,0
325,0
325,0
325,0
y
Front center
678,0
699,0
730,0
762,0
