Orbea WILD HT 30 29 2022

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

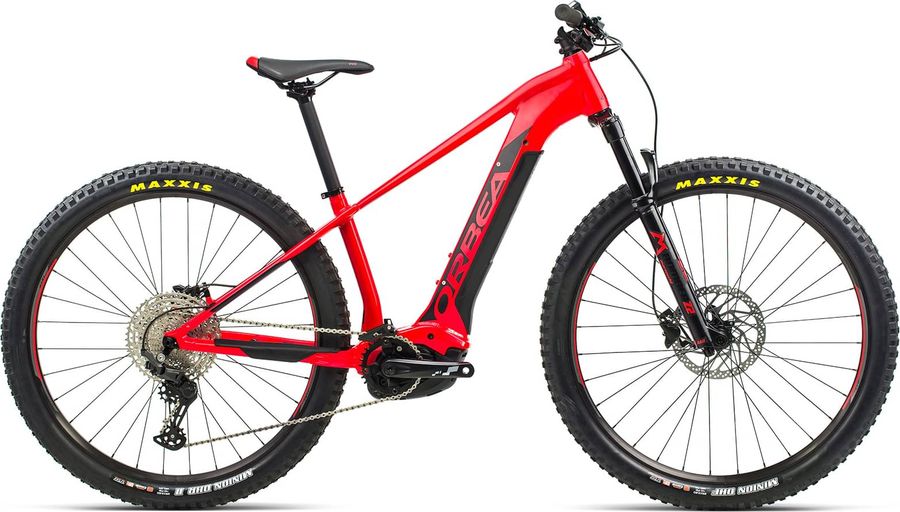

Orbea WILD HT 30 29 2022

About the Orbea WILD HT 30 29 2022

The Orbea WILD HT 30 29 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Orbea WILD HT 30 29 2022 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
VP-537 Black
Remote
BOSCH Performance Purion
Components
Steam
OC1 3D Forged 35mm interface 7º
Saddle
Selle Royal Vivo
Battery
BOSCH Powertube 500Wh Horizontal EU BBP280
Charger
Compact Charger 2A (100-240V) Worldwide
Seatpost
Alloy 31.6x400mm Offset 0
Handlebar
OC1 35mm 12mm Rise 780mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
PW EB04-NW32 G4
Motor
BOSCH Performance CX Cruise (25km/h) BDU450CX
Shifter
Shimano Deore M5100
Chain guide
Orbea OC chainguide 32-38t
Bottom bracket
Bosch, press-fit
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Chain
KMC e11 Turbo
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Frameset
Frame
Orbea Wild Hardtrail 2020 Alloy 12X148 for Bosch
Front suspension
Marzocchi Bomber Z2
Wheels
Rims
Orbea Tryp 30c Disc Tubeless ready
Tires
Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
390,0
415,0
440,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
582,0
602,0
631,0
660,0
d
Head tube length
115,0
130,0
145,0
160,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
104,0
102,0
104,0
104,0
h
Wheelbase
1146,0
1167,0
1197,0
1228,0
i
Chainstay length
477,0
477,0
477,0
477,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
641,0
654,0
668,0
682,0
l
Reach
382,0
397,0
422,0
447,0
m
Standover height
805,0
812,0
823,0
833,0
x
Bottom bracket height
311,0
311,0
311,0
311,0
y
Front center
676,0
697,0
727,0
758,0
