Pivot Firebird 27.5 PRO XT/XTR 1x 2018

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
170mm

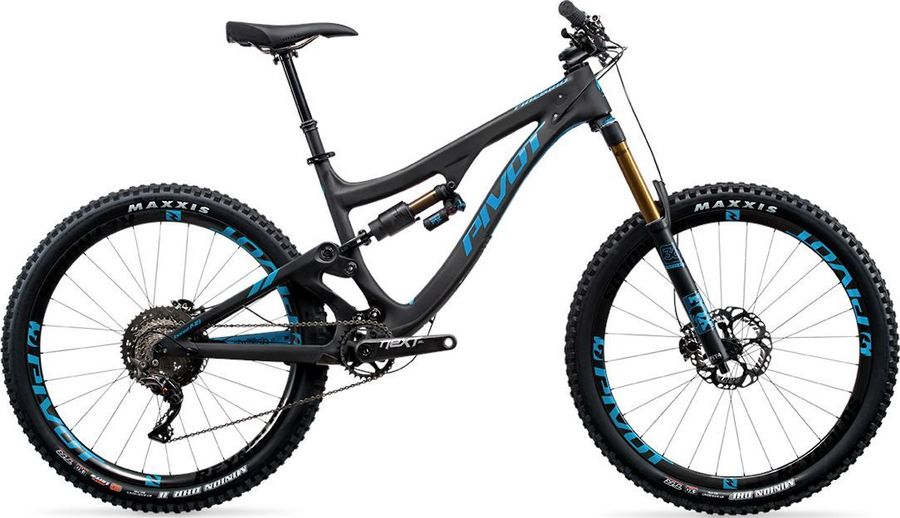

Pivot Firebird 27.5 PRO XT/XTR 1x 2018

About the Pivot Firebird 27.5 PRO XT/XTR 1x 2018

The Pivot Firebird 27.5 PRO XT/XTR 1x 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Firebird 27.5 PRO XT/XTR 1x 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Team Enduro, 35mm clamp, 45mm length
Saddle
Pivot WTB Vigo Race
Headset
Pivot Precision Sealed Bearing
Seatpost
FOX Transfer, 125mm or 150mm drop (KS LEV Integra for S)
Handlebar
Phoenix Team, carbon, 35mm diameter, 800mm width
Brake lever
Shimano XT M8000
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Chain
Shimano, 11-speed
Crankset
Race Face Aeffect SL
Shifter
Shimano XT, 11-speed
Bottom bracket
PF92
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float X2 Performance
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss M1700 Spline-Two, 30mm inner width
Tires
Front: Maxxis Minion DHF WT, 2.5" TR 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II WT, 2.4" TR 3C MaxxTerra EXO
Spokes
DT Swiss
Rear hub
DT Swiss M1700 Spline-Two with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
DT Swiss M1700 Spline-Two with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
393,7
425,5
457,2
495,3
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
587,3
609,4
631,7
654,6
d
Head tube length
100,1
110,0
119,9
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1168,7
1197,9
1222,3
1246,4
i
Chainstay length
423,7
423,7
423,7
423,7
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
579,7
588,8
597,7
606,6
l
Reach
413,8
438,7
458,8
478,6
m
Standover height
701,6
710,7
710,7
716,6
x
Bottom bracket height
349,2
349,2
349,2
349,2
y
Front center
-
-
-
-
