Pivot Firebird 27.5 TEAM XTR Di2 2x 2018

MTB Enduro
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
170mm

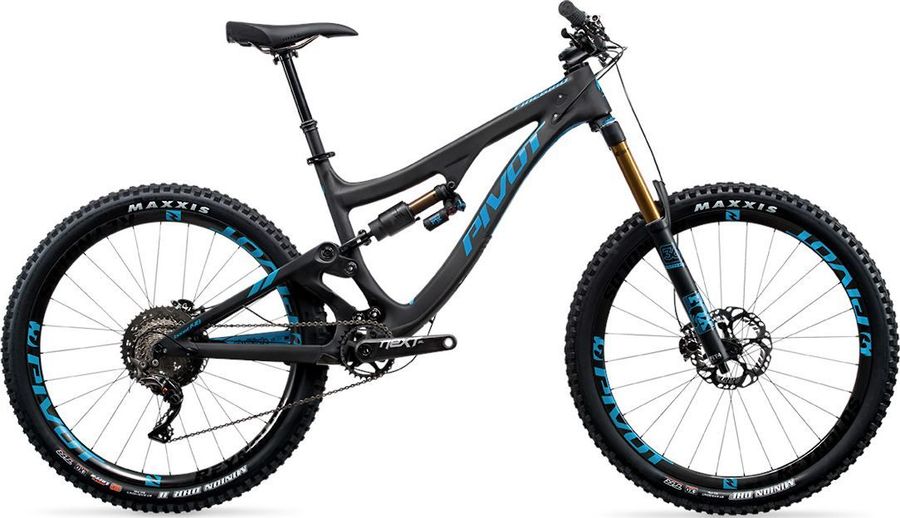

Pivot Firebird 27.5 TEAM XTR Di2 2x 2018

About the Pivot Firebird 27.5 TEAM XTR Di2 2x 2018

The Pivot Firebird 27.5 TEAM XTR Di2 2x 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Firebird 27.5 TEAM XTR Di2 2x 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Lock-on
Pedals
None included
Components
Steam
Phoenix Trail Enduro
Saddle
Pivot WTB Vigo Team
Headset
Pivot Precision Sealed Bearing
Seatpost
FOX Transfer, 125mm or 150mm drop (KS LEV Integra for S)
Handlebar
Phoenix Carbon Riser
Brake lever
Shimano XTR M9000 Trail
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Chain
Shimano, 11-speed
Crankset
Race Face Next SL
Shifter
Shimano XTR Di2, 11-speed
Bottom bracket
PF92
Front derailleur
Shimano XTR Di2
Rear derailleur
Shimano XTR RD-M9050 Di2
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Enduro, carbon
Tires
Front: Maxxis Minion DHF WT, 2.5" TR 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II WT, 2.4" TR 3C MaxxTerra EXO
Spokes
Reynolds Enduro
Rear hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
393,7
425,5
457,2
495,3
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
587,3
609,4
631,7
654,6
d
Head tube length
100,1
110,0
119,9
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1168,7
1197,9
1222,3
1246,4
i
Chainstay length
423,7
423,7
423,7
423,7
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
579,7
588,8
597,7
606,6
l
Reach
413,8
438,7
458,8
478,6
m
Standover height
701,6
710,7
710,7
716,6
x
Bottom bracket height
349,2
349,2
349,2
349,2
y
Front center
-
-
-
-
