Pivot Firebird 27.5 TEAM XX1 Eagle 2018

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
170mm

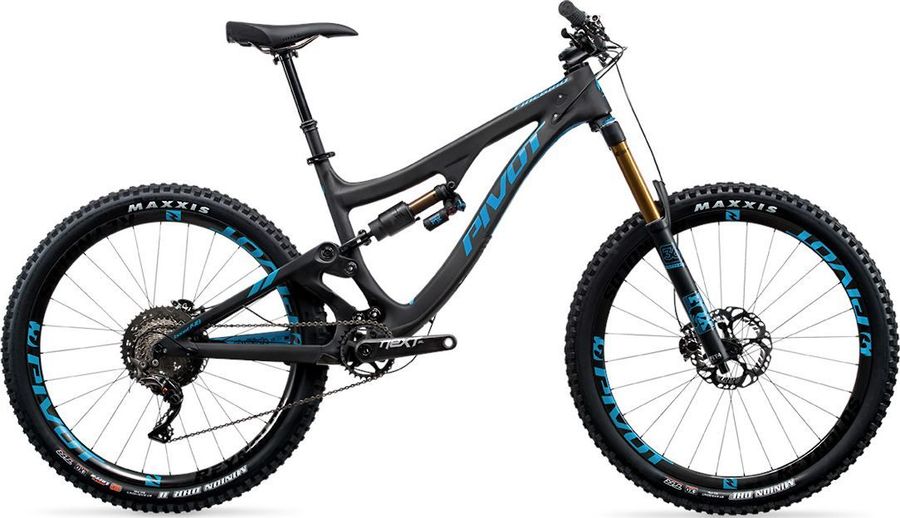

Pivot Firebird 27.5 TEAM XX1 Eagle 2018

About the Pivot Firebird 27.5 TEAM XX1 Eagle 2018

The Pivot Firebird 27.5 TEAM XX1 Eagle 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Firebird 27.5 TEAM XX1 Eagle 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Lock-on
Pedals
None included
Components
Steam
Phoenix Trail Enduro
Saddle
Pivot WTB Vigo Team
Headset
Pivot Precision Sealed Bearing
Seatpost
FOX Transfer, 125mm or 150mm drop (KS LEV Integra for S)
Handlebar
Phoenix Carbon Riser
Brake lever
SRAM Guide Ultimate
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Chain
SRAM Eagle, 12-speed
Crankset
SRAM XX1 Eagle, carbon
Shifter
SRAM XX1 Eagle, 12-speed
Bottom bracket
PF92
Cassette
SRAM XX1 XG1299 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Enduro, carbon
Tires
Front: Maxxis Minion DHF WT, 2.5" TR 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II WT, 2.4" TR 3C MaxxTerra EXO
Spokes
Reynolds Enduro
Rear hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
393,7
425,5
457,2
495,3
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
587,3
609,4
631,7
654,6
d
Head tube length
100,1
110,0
119,9
130,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1168,7
1197,9
1222,3
1246,4
i
Chainstay length
423,7
423,7
423,7
423,7
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
579,7
588,8
597,7
606,6
l
Reach
413,8
438,7
458,8
478,6
m
Standover height
701,6
710,7
710,7
716,6
x
Bottom bracket height
349,2
349,2
349,2
349,2
y
Front center
-
-
-
-
