BikeWise

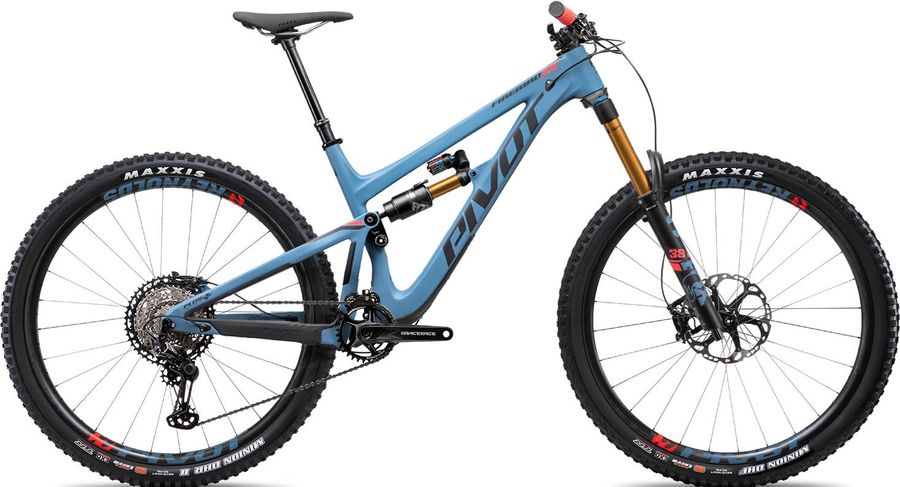

Pivot Firebird 29 Team XTR 2021

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
162mm
Pivot Firebird 29 Team XTR 2021

About the Pivot Firebird 29 Team XTR 2021

The Pivot Firebird 29 Team XTR 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Firebird 29 Team XTR 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Team High Tail Trail
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Factory Series 125mm (SM) 150mm (MD-LG), 175mm (XL)
Handlebar
Phoenix Team Low Rise Carbon - 800mm
Discs
Shimano XTR CenterLock - 203mmShimano XTR CenterLock - 180mm
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next R 32t
Shifter
Shimano XTR M9100 12-Speed
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Firebird 29
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 38 Factory
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHR II 29" x 2.4" TR, 3C, EXOX, MAXXTERRA

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
394,0
394,0
424,0
424,0
457,0
457,0
495,0
495,0
b
Seat tube angle
76,25º
75,75º
76,25º
75,75º
76,25º
75,75º
76,25º
75,75º
c
Top tube length
588,0
588,0
619,0
619,0
639,0
642,0
662,0
665,0
d
Head tube length
95,0
95,0
105,0
105,0
115,0
115,0
125,0
125,0
e
Head tube angle
65,5º
65,0º
65,5º
65,0º
65,5º
65,0º
65,5º
65,0º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1180,0
1179,0
1211,0
1210,0
1236,0
1234,0
1260,0
1259,0
i
Chainstay length
423,0
425,0
423,0
425,0
423,0
425,0
423,0
425,0
j
Bottom bracket drop
20,0
26,0
20,0
26,0
20,0
26,0
20,0
26,0
k
Stack height
593,0
599,0
604,0
606,0
611,0
616,0
621,0
627,0
l
Reach
426,0
423,0
454,0
449,0
474,0
469,0
494,0
489,0
m
Standover height
683,0
677,0
690,0
683,0
703,0
697,0
713,0
707,0
x
Bottom bracket height
354,0
348,0
354,0
348,0
354,0
348,0
354,0
348,0
y
Front center
-
-
-
-
-
-
-
-
