Pivot Firebird 29 Team XX1 2019

MTB Enduro
Groupset
SRAM XX1
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm

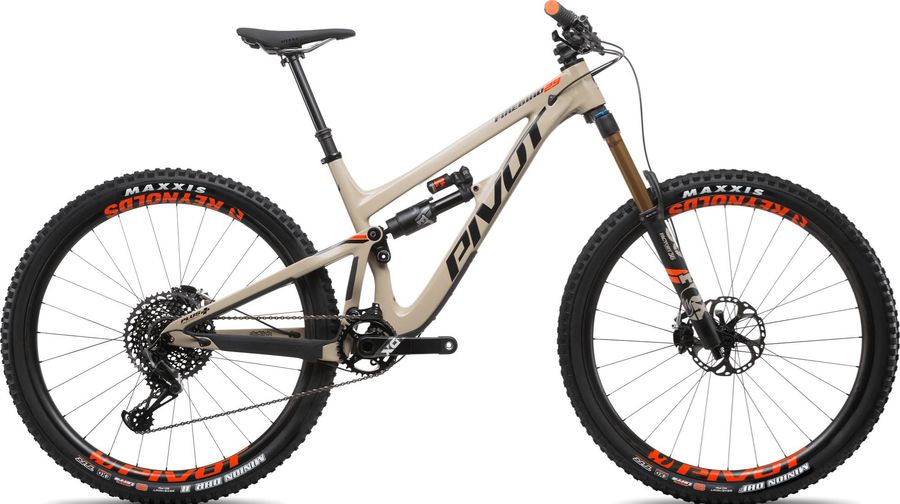

Pivot Firebird 29 Team XX1 2019

About the Pivot Firebird 29 Team XX1 2019

The Pivot Firebird 29 Team XX1 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Firebird 29 Team XX1 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail - 45mm
Saddle
Phoenix WTB Team High Tail Trail
Headset
Pivot Precision Sealed Cartridge
Seatpost
KS LEV 125mm (SM), KS Rage-i 150mm(MD), Fox Transfer 150mm (LG) Fox Transfer 175mm (XL)
Handlebar
Phoenix Team Low Rise Carbon - 800mm
Discs
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
SRAM XX1 Eagle DUB SL 32t - 170mm
Shifter
SRAM XX1 12-Speed
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM XX1 246 g
Chain connector
PowerLock
Chain length links
118 links
Color inner link
Silver
Color outer link
Silver
Compat speed
11s
Inner link finish
Chrome Plated
Model
CN-XX-1-A1
Name
XX1 HARD CHROME Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
246
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Firebird 29
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" TR, 3C, EXO, MAXXTERRAMaxxis Minion DHR II 29" x 2.4" TR, 3C, EXO, MAXXTERRA

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
424,0
457,0
495,0
b
Seat tube angle
75,75º
75,75º
75,75º
75,75º
c
Top tube length
588,0
619,0
642,0
665,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1179,0
1210,0
1234,0
1259,0
i
Chainstay length
425,0
425,0
425,0
425,0
j
Bottom bracket drop
26,0
26,0
26,0
26,0
k
Stack height
599,0
606,0
616,0
627,0
l
Reach
423,0
449,0
469,0
489,0
m
Standover height
677,0
683,0
697,0
707,0
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
-
-
-
-
