Pivot Firebird Race X01 2022

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
165mm

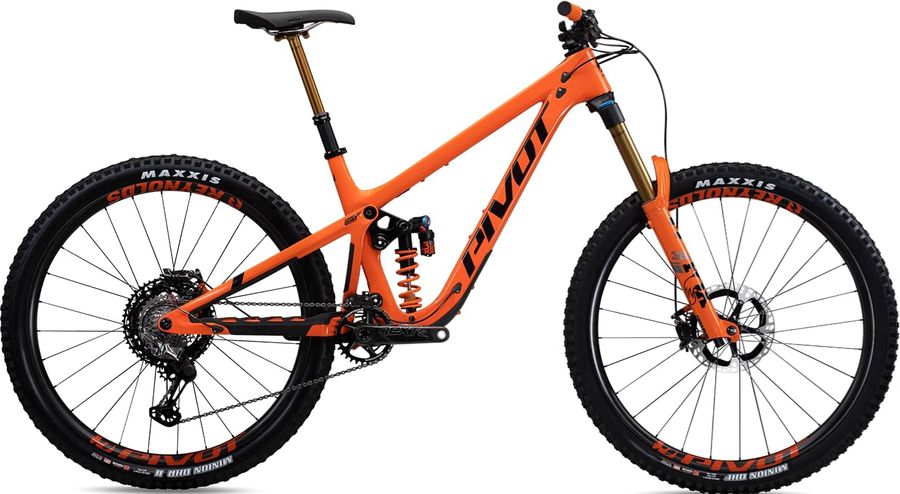

Pivot Firebird Race X01 2022

About the Pivot Firebird Race X01 2022

The Pivot Firebird Race X01 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Firebird Race X01 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Volt Race (Medium Width)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Performance Elite 150mm (SM), 175mm (MD-LG), 200mm (XL)
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Discs
SRAM Centerline 6-bolt - 200mmSRAM Centerline 6-bolt - 200mm
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant 7k Eagle DUB 32t
Shifter
SRAM GX Eagle 12-Speed
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Firebird
Rear suspension
Fox Float Performance Elite
Front suspension
Fox 38 Performance
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
375,0
375,0
410,0
410,0
440,0
440,0
470,0
470,0
b
Seat tube angle
76,5º
76,0º
77,0º
76,5º
77,5º
77,0º
77,5º
77,0º
c
Top tube length
589,0
590,0
615,0
616,0
632,0
633,0
656,0
657,0
d
Head tube length
95,0
95,0
108,0
108,0
118,0
118,0
128,0
128,0
e
Head tube angle
64,6º
64,0º
64,6º
64,0º
64,6º
64,0º
64,6º
64,0º
f
Rake
38,0
37,0
38,0
37,0
38,0
37,0
38,0
37,0
g
Trail
136,0
141,0
136,0
141,0
136,0
141,0
136,0
141,0
h
Wheelbase
1198,0
1199,0
1229,0
1231,0
1258,0
1259,0
1291,0
1292,0
i
Chainstay length
422,0
423,0
425,0
426,0
429,0
430,0
436,0
437,0
j
Bottom bracket drop
14,0
20,0
14,0
20,0
14,0
20,0
14,0
20,0
k
Stack height
604,0
607,0
616,0
619,0
625,0
628,0
634,0
637,0
l
Reach
442,0
437,0
465,0
460,0
485,0
480,0
507,0
502,0
m
Standover height
659,0
654,0
670,0
664,0
691,0
685,0
701,0
696,0
x
Bottom bracket height
356,0
350,0
356,0
350,0
356,0
350,0
356,0
350,0
y
Front center
776,0
777,0
804,0
806,0
829,0
830,0
855,0
856,0
