Pivot Firebird Race XT 2022

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
165mm

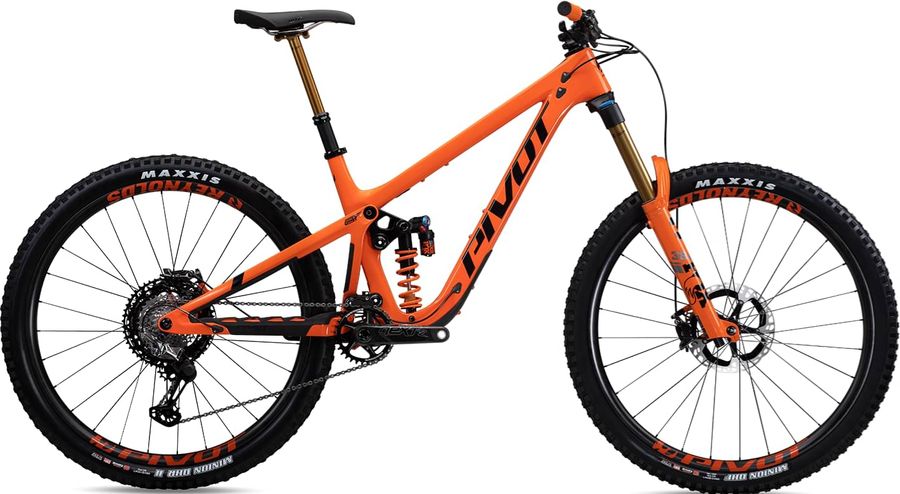

Pivot Firebird Race XT 2022

About the Pivot Firebird Race XT 2022

The Pivot Firebird Race XT 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Firebird Race XT 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Volt Race (Medium Width)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Performance Elite 150mm (SM), 175mm (MD-LG), 200mm (XL)
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Discs
Shimano SLX 6-bolt - 203mm Shimano SLX 6-bolt - 203mm
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Ride 32t
Shifter
Shimano SLX M7100 ISPEC EV 12-Speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Firebird
Rear suspension
Fox Float Performance Elite
Front suspension
Fox 38 Performance
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
375,0
375,0
410,0
410,0
440,0
440,0
470,0
470,0
b
Seat tube angle
76,5º
76,0º
77,0º
76,5º
77,5º
77,0º
77,5º
77,0º
c
Top tube length
589,0
590,0
615,0
616,0
632,0
633,0
656,0
657,0
d
Head tube length
95,0
95,0
108,0
108,0
118,0
118,0
128,0
128,0
e
Head tube angle
64,6º
64,0º
64,6º
64,0º
64,6º
64,0º
64,6º
64,0º
f
Rake
38,0
37,0
38,0
37,0
38,0
37,0
38,0
37,0
g
Trail
136,0
141,0
136,0
141,0
136,0
141,0
136,0
141,0
h
Wheelbase
1198,0
1199,0
1229,0
1231,0
1258,0
1259,0
1291,0
1292,0
i
Chainstay length
422,0
423,0
425,0
426,0
429,0
430,0
436,0
437,0
j
Bottom bracket drop
14,0
20,0
14,0
20,0
14,0
20,0
14,0
20,0
k
Stack height
604,0
607,0
616,0
619,0
625,0
628,0
634,0
637,0
l
Reach
442,0
437,0
465,0
460,0
485,0
480,0
507,0
502,0
m
Standover height
659,0
654,0
670,0
664,0
691,0
685,0
701,0
696,0
x
Bottom bracket height
356,0
350,0
356,0
350,0
356,0
350,0
356,0
350,0
y
Front center
776,0
777,0
804,0
806,0
829,0
830,0
855,0
856,0
