Pivot LES 27.5 Pro X01 2022

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

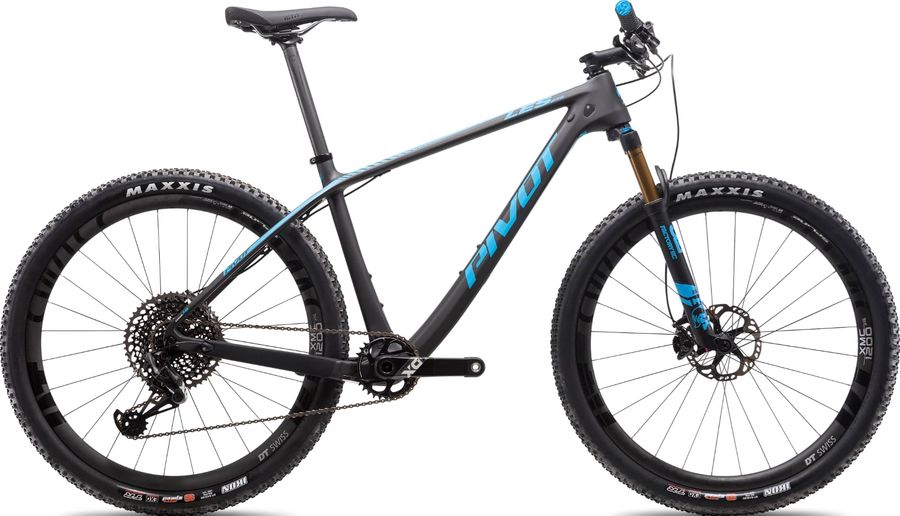

Pivot LES 27.5 Pro X01 2022

About the Pivot LES 27.5 Pro X01 2022

The Pivot LES 27.5 Pro X01 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Pivot LES 27.5 Pro X01 2022 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB Pro Volt (Narrow Width)
Headset
Pivot Precision Sealed Cartridge - Race
Seatpost
Phoenix Pro Carbon
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X01 Eagle DUB 34t
Shifter
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
LES 27.5
Front suspension
Fox 32 Factory SC
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 27.5" 15x110 F/12x148 R
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPIMaxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
445,0
483,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
553,0
581,0
601,0
621,0
d
Head tube length
89,0
102,0
108,0
120,0
e
Head tube angle
68,75º
69,25º
69,25º
69,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1062,0
1076,0
1091,0
1108,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
53,0
53,0
53,0
53,0
k
Stack height
575,0
589,0
594,0
607,0
l
Reach
386,0
402,0
415,0
430,0
m
Standover height
650,0
688,0
726,0
732,0
x
Bottom bracket height
302,0
302,0
302,0
302,0
y
Front center
-
-
-
-
