Pivot LES 27.5 Team XTR 2019

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

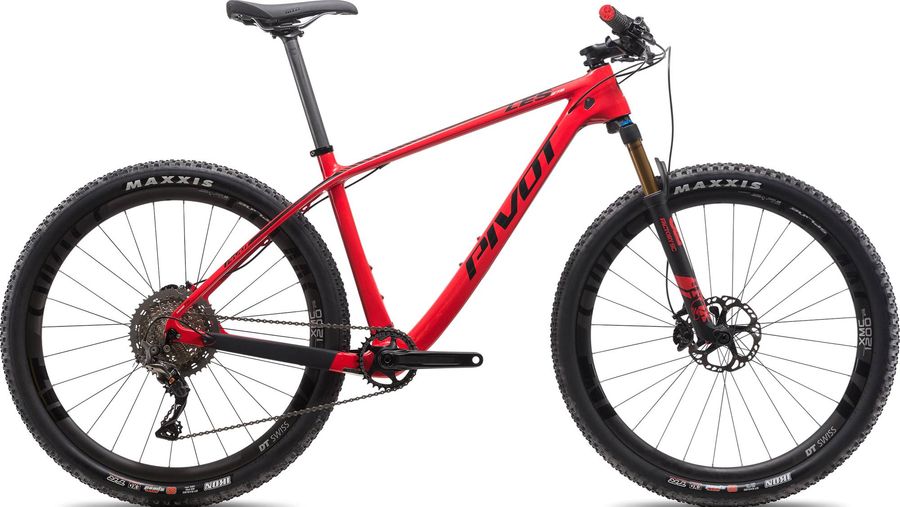

Pivot LES 27.5 Team XTR 2019

About the Pivot LES 27.5 Team XTR 2019

The Pivot LES 27.5 Team XTR 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Pivot LES 27.5 Team XTR 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team XC/Trail - 75mm
Saddle
Phoenix WTB Team Volt
Headset
Pivot Precision Sealed Cartridge - Race
Seatpost
Phoenix Team Carbon
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
Shimano XTR CenterLock - 160mmShimano XTR CenterLock - 160mm
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL 34T
Shifter
Shimano XTR M9100 ISPEC 12-Speed
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
LES 27.5
Front suspension
Fox 32 Factory SC
Wheels
Rims
DT Swiss XMC 1200 w/ DT Swiss 240 hub, 24mm - 27.5"
Tires
Maxxis Ikon 27.5" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ikon 27.5" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI

Geometry

Size XS SM MD LG
a
Seat tube length
368,0
406,0
445,0
483,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
553,0
581,0
601,0
621,0
d
Head tube length
89,0
102,0
108,0
120,0
e
Head tube angle
68,75º
69,25º
69,25º
69,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1062,0
1076,0
1091,0
1108,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
53,0
53,0
53,0
53,0
k
Stack height
575,0
589,0
594,0
607,0
l
Reach
386,0
402,0
415,0
430,0
m
Standover height
650,0
688,0
726,0
732,0
x
Bottom bracket height
302,0
302,0
302,0
302,0
y
Front center
-
-
-
-
