Pivot LES Singlespeed Pro Singlespeed 2022

MTB Cross Country

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

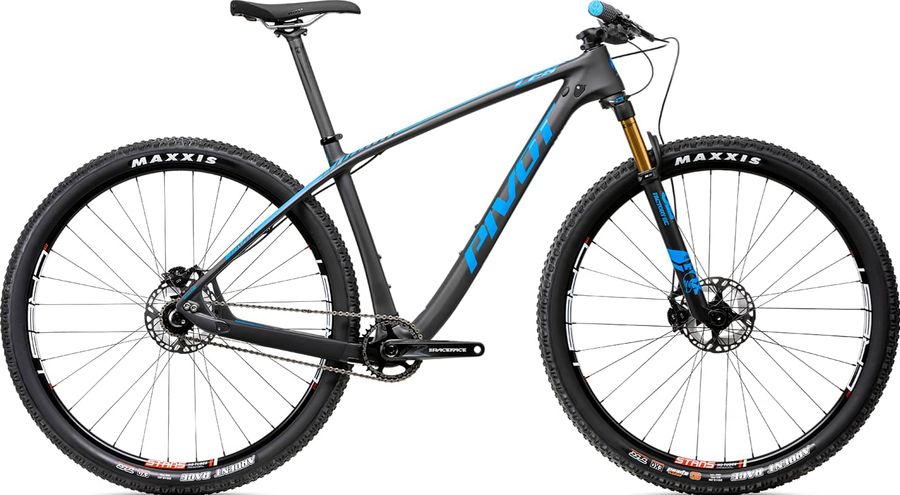

About the Pivot LES Singlespeed Pro Singlespeed 2022

The Pivot LES Singlespeed Pro Singlespeed 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Pivot LES Singlespeed Pro Singlespeed 2022 has 4 features listed below.

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Remote lockout More info

Specifications

Acessories
Grip	Phoenix Factory Lock-On

Components
Steam	Phoenix Team XC/Trail
Saddle	Phoenix WTB Pro Volt (Narrow Width)
Headset	Pivot Precision Sealed Integrated Cartridge
Seatpost	Phoenix Pro Carbon
Handlebar	Phoenix Team Flat Carbon - 760mm
Discs	Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm
Brakes	Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g) 392 (BL-M8100) Brake hose color kit Black Brake hose kit SM-BH90-SBM Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M8100 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option J03A Resin (w/ fin) Pad option J04C Metal (w/ fin) Pad standard G03A Resin (w/o fin) Pad standard G04S Metal (w/o fin) Pad mount Pad axle Piston 2 Piston material Ceramic Recommended brake lever BL-M8100 BL-T8100

Drivetrain
Crankset	Race Face Æffect R 32t
Cassette	Wolf Tooth Aluminum Single Speed Cog - 18t
Chain	Shimano CN-HG701 257 g
Average weight (g) 257 Chromizing treatment roller link pin Model CN-HG701-11 Pin link plate SIL-TEC Roller link plate SIL-TEC Type HG-X11

Frameset
Frame	LES Singlespeed
Front suspension	Fox 32 Factory SC

Wheels
Rims	DT Swiss M1700 w/ DT Swiss 350 hub & 36t Star Ratchet 25mm - 29" 15x110 F/12x148 R
Tires	Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	406,0	451,0	483,0	533,0
b Seat tube angle	73,0º	72,5º	72,5º	72,5º
c Top tube length	588,0	613,0	628,0	654,0
d Head tube length	98,0	102,0	113,0	140,0
e Head tube angle	69,3º	69,5º	69,5º	70,0º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	1088,0	1105,0	1121,0	1142,0
i Chainstay length	440,0	440,0	440,0	440,0
j Bottom bracket drop	67,0	67,0	67,0	67,0
k Stack height	615,0	619,0	637,0	657,0
l Reach	402,0	420,0	429,0	449,0
m Standover height	730,0	748,0	758,0	760,0
x Bottom bracket height	307,0	307,0	307,0	307,0
y Front center	-	-	-	-
