Pivot LES SL Race XT 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

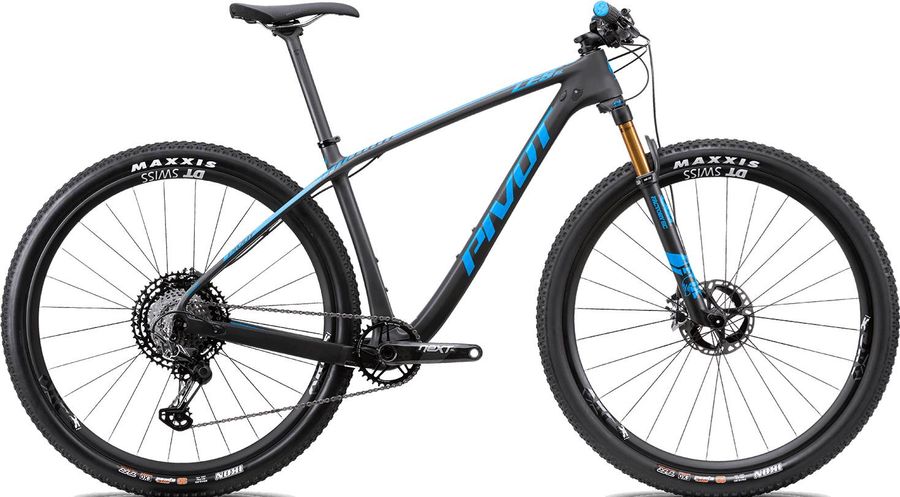

Pivot LES SL Race XT 2020

About the Pivot LES SL Race XT 2020

The Pivot LES SL Race XT 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Pivot LES SL Race XT 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB Race Volt
Headset
Pivot Precision Sealed Integrated Cartridge
Seatpost
Phoenix Race Aluminum
Handlebar
Phoenix Race Low Rise Aluminum
Discs
Shimano SLX 6-bolt - 160mmShimano SLX 6-bolt - 160mm
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Race Face Ride 32t
Shifter
Shimano SLX M7100 12-Speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
LES SL
Front suspension
Fox 32 Performance SC
Wheels
Rims
SUNringlé Charger Comp w/ SUNringlé SRC hub, 27mm - 29"
Tires
Maxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ikon 29" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
451,0
483,0
533,0
b
Seat tube angle
73,0º
72,5º
72,5º
72,5º
c
Top tube length
588,0
613,0
628,0
654,0
d
Head tube length
98,0
102,0
113,0
140,0
e
Head tube angle
69,3º
69,5º
69,5º
70,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1088,0
1105,0
1121,0
1142,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
67,0
67,0
67,0
67,0
k
Stack height
615,0
619,0
637,0
657,0
l
Reach
402,0
420,0
429,0
449,0
m
Standover height
730,0
748,0
758,0
760,0
x
Bottom bracket height
307,0
307,0
307,0
307,0
y
Front center
-
-
-
-
