Pivot Mach 4 Carbon Pro X01 2020

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm

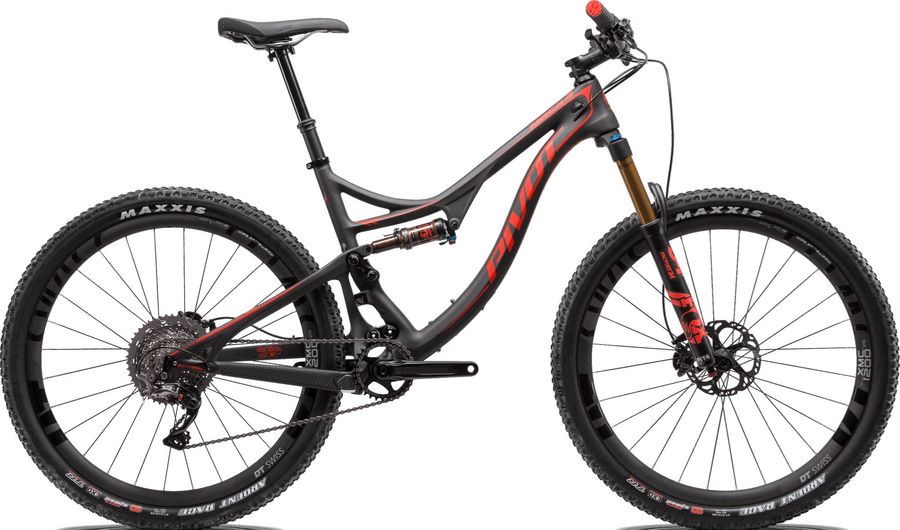

Pivot Mach 4 Carbon Pro X01 2020

About the Pivot Mach 4 Carbon Pro X01 2020

The Pivot Mach 4 Carbon Pro X01 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Pivot Mach 4 Carbon Pro X01 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB Pro Volt
Headset
Pivot Precision Sealed Cartridge
Seatpost
Phoenix Pro Carbon
Handlebar
Phoenix Team Low Rise Carbon
Discs
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X01 Eagle DUB 32t
Shifter
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Mach 4 Carbon
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub & 36t Star Ratchet 25mm - 27.5"
Tires
Maxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED

Geometry

Size XS SM MD LG LL
a
Seat tube length
368,0
406,0
445,0
483,0
-
b
Seat tube angle
73,8º
73,25º
73,25º
73,25º
73,6º
c
Top tube length
557,0
585,0
605,0
624,0
647,0
d
Head tube length
85,0
102,0
108,0
120,0
130,0
e
Head tube angle
68,5º
69,2º
69,2º
69,2º
69,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1074,0
1087,0
1107,0
1124,0
1152,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
30,0
k
Stack height
552,0
571,0
577,0
589,0
599,0
l
Reach
394,0
408,0
426,0
441,0
466,0
m
Standover height
664,0
669,0
671,0
688,0
695,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
325,0
y
Front center
-
-
-
-
-
