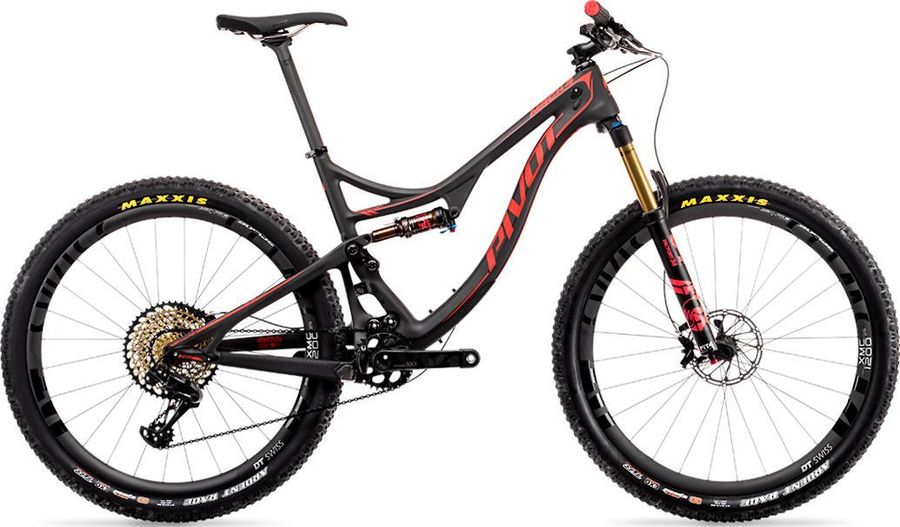

Pivot Mach 4 Carbon RACE X01 2018
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
115mm
About the Pivot Mach 4 Carbon RACE X01 2018
The Pivot Mach 4 Carbon RACE X01 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Phoenix Team Padloc
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, XL)
|
|---|---|
|
Saddle
|
Phoenix WTB Volt Race
|
|
Headset
|
Pivot Semi-Sealed Cartridge
|
|
Seatpost
|
Phoenix Race, aluminum (FOX Transfer upgrade available)
|
|
Handlebar
|
Phoenix Race, aluminum, 35mm clamp, 750mm width
|
|
Brake lever
|
Shimano SLX M7000
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Chain
|
SRAM Eagle, 12-speed
|
|---|---|
|
Crankset
|
SRAM X1 Eagle
|
|
Shifter
|
SRAM GX1 Eagle, 12-speed
|
|
Bottom bracket
|
PF92
|
|
Cassette
|
SRAM X01 Eagle
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 34 Performance
|
|
Rear suspension
|
Fox Float DPS Factory Kashima
|
|
Rims
|
Sun Ringle Charger Comp
|
|---|---|
|
Tires
|
Front: Maxxis High Roller II, 2.3” TR EXO 3C MaxxTerra, Rear: Maxxis Ardent Race, 2.35" TR 3C EXO MaxxSpeed 120 TPI
|
|
Spokes
|
Sun Ringle Charger Comp
|
|
Rear hub
|
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
|
Front hub
|
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
Geometry
| Size | XS | XS | SM | SM | MD | MD | LG | LG | LG |
|---|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
368,3
|
368,3
|
406,4
|
406,4
|
444,5
|
444,5
|
482,6
|
482,6
|
508,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,4º
|
|
c
Top tube length
|
557,3
|
557,3
|
585,2
|
585,2
|
605,6
|
605,6
|
624,6
|
624,6
|
647,5
|
|
d
Head tube length
|
85,1
|
85,1
|
101,6
|
101,6
|
107,9
|
107,9
|
119,9
|
119,9
|
130,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
69,2º
|
69,2º
|
69,2º
|
69,2º
|
69,2º
|
69,2º
|
69,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1074,2
|
1074,2
|
1087,4
|
1087,4
|
1107,2
|
1107,2
|
1124,2
|
1124,2
|
1152,4
|
|
i
Chainstay length
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
|
j
Bottom bracket drop
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
|
k
Stack height
|
552,2
|
552,2
|
571,3
|
571,3
|
577,4
|
577,4
|
589,3
|
589,3
|
599,2
|
|
l
Reach
|
394,2
|
394,2
|
408,2
|
408,2
|
426,2
|
426,2
|
441,2
|
441,2
|
466,4
|
|
m
Standover height
|
664,2
|
664,2
|
669,3
|
669,3
|
671,3
|
671,3
|
688,4
|
688,4
|
695,7
|
|
x
Bottom bracket height
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
