Pivot Mach 4 Carbon Race X01 2020

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm

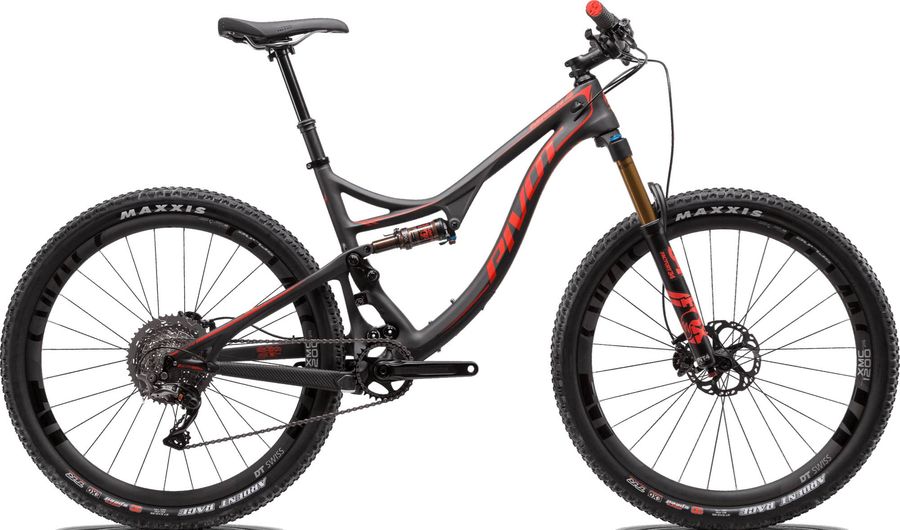

Pivot Mach 4 Carbon Race X01 2020

About the Pivot Mach 4 Carbon Race X01 2020

The Pivot Mach 4 Carbon Race X01 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Pivot Mach 4 Carbon Race X01 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB Race Volt
Headset
Pivot Semi-Sealed Cartridge
Seatpost
Phoenix Race Aluminum
Handlebar
Phoenix Race Low Rise Aluminum
Discs
SRAM Centerline 6-bolt - 160mmSRAM Centerline 6-bolt - 160mm
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM Descendant 7k Eagle DUB 32t
Shifter
SRAM GX Eagle 12-Speed
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Mach 4 Carbon
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 34 Performance
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 25mm -27.5”
Tires
Maxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED

Geometry

Size XS SM MD LG LL
a
Seat tube length
368,0
406,0
445,0
483,0
-
b
Seat tube angle
73,8º
73,25º
73,25º
73,25º
73,6º
c
Top tube length
557,0
585,0
605,0
624,0
647,0
d
Head tube length
85,0
102,0
108,0
120,0
130,0
e
Head tube angle
68,5º
69,2º
69,2º
69,2º
69,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1074,0
1087,0
1107,0
1124,0
1152,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
30,0
k
Stack height
552,0
571,0
577,0
589,0
599,0
l
Reach
394,0
408,0
426,0
441,0
466,0
m
Standover height
664,0
669,0
671,0
688,0
695,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
325,0
y
Front center
-
-
-
-
-
