Pivot Mach 4 Carbon RACE XT 1x 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
115mm

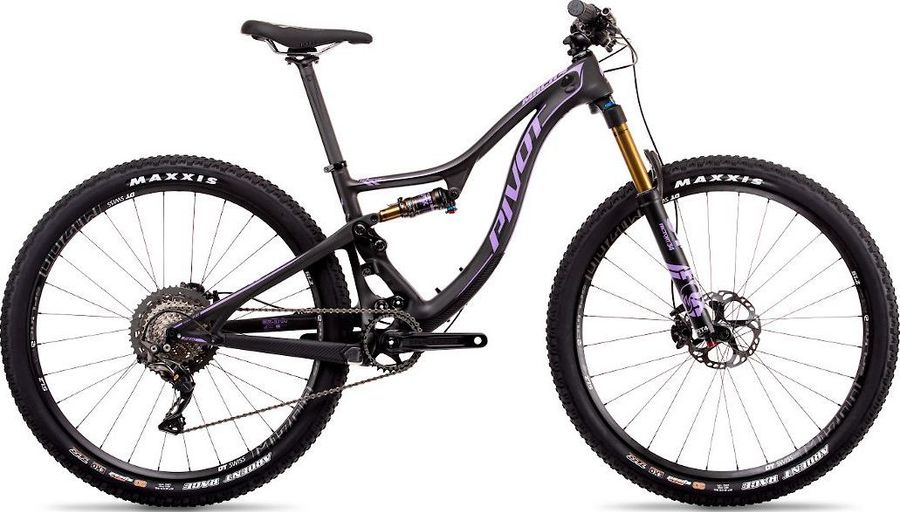

Pivot Mach 4 Carbon RACE XT 1x 2018

About the Pivot Mach 4 Carbon RACE XT 1x 2018

The Pivot Mach 4 Carbon RACE XT 1x 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 4 Carbon RACE XT 1x 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, L/Long)
Saddle
Phoenix WTB Volt Race
Headset
Pivot Semi-Sealed Cartridge
Seatpost
Phoenix Race, aluminum (FOX Transfer upgrade available)
Handlebar
Phoenix Race, aluminum, 35mm clamp, 750mm width
Brake lever
Shimano SLX M7000
Brakes
Shimano SLX BR-M7000
Drivetrain
Chain
Shimano, 11-speed
Crankset
Race Face Aeffect SL
Shifter
Shimano SLX, 11-speed
Bottom bracket
PF92
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Performance
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Sun Ringle Charger Comp
Tires
Front: Maxxis High Roller II, 2.3” TR EXO 3C MaxxTerra, Rear: Maxxis Ardent Race, 2.35" TR 3C EXO MaxxSpeed 120 TPI
Spokes
Sun Ringle Charger Comp
Rear hub
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size XS XS SM SM MD MD LG LG LG
a
Seat tube length
368,3
368,3
406,4
406,4
444,5
444,5
482,6
482,6
508,0
b
Seat tube angle
73,8º
73,8º
73,0º
73,0º
73,0º
73,0º
73,0º
73,0º
73,4º
c
Top tube length
557,3
557,3
585,2
585,2
605,6
605,6
624,6
624,6
647,5
d
Head tube length
85,1
85,1
101,6
101,6
107,9
107,9
119,9
119,9
130,0
e
Head tube angle
68,5º
68,5º
69,2º
69,2º
69,2º
69,2º
69,2º
69,2º
69,5º
f
Rake
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
h
Wheelbase
1074,2
1074,2
1087,4
1087,4
1107,2
1107,2
1124,2
1124,2
1152,4
i
Chainstay length
430,3
430,3
430,3
430,3
430,3
430,3
430,3
430,3
430,3
j
Bottom bracket drop
30,0
30,0
30,0
30,0
30,0
30,0
30,0
30,0
30,0
k
Stack height
552,2
552,2
571,3
571,3
577,4
577,4
589,3
589,3
599,2
l
Reach
394,2
394,2
408,2
408,2
426,2
426,2
441,2
441,2
466,4
m
Standover height
664,2
664,2
669,3
669,3
671,3
671,3
688,4
688,4
695,7
x
Bottom bracket height
325,1
325,1
325,1
325,1
325,1
325,1
325,1
325,1
325,1
y
Front center
-
-
-
-
-
-
-
-
-
