Pivot Mach 4 Carbon Race XT 2019

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm

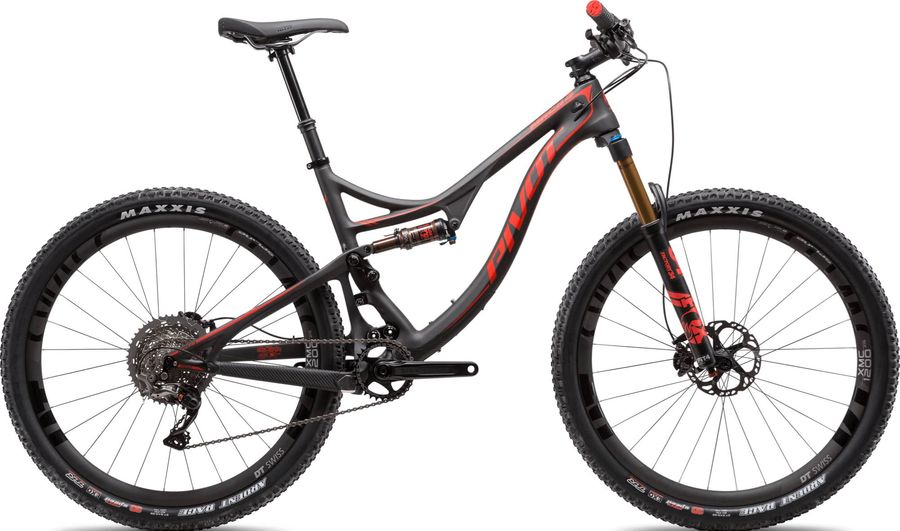

Pivot Mach 4 Carbon Race XT 2019

About the Pivot Mach 4 Carbon Race XT 2019

The Pivot Mach 4 Carbon Race XT 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 4 Carbon Race XT 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team XC/Trail - 75mm
Saddle
Phoenix WTB Race Volt
Headset
Pivot Semi-Sealed Cartridge
Seatpost
KS LEV 100mm (XS, SM), Fox Transfer 125mm (MD, LG, XL)
Handlebar
Phoenix Race Low Rise Aluminum - 750mm
Discs
Shimano SLX 6-bolt - 160mmShimano SLX 6-bolt - 160mm
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Race Face Ride 30T
Shifter
Shimano SLX M7000 11-Speed
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Mach 4 Carbon
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 34 Performance
Wheels
Rims
SUNringlé Charger Comp w/ SUNringlé SRC hub, 27mm - 27.5"
Tires
Maxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ardent Race 27.5" x 2.35" TR, 3C, EXO, MAXXSPEED

Geometry

Size XS SM MD LG LL
a
Seat tube length
368,0
406,0
445,0
483,0
-
b
Seat tube angle
73,8º
73,25º
73,25º
73,25º
73,6º
c
Top tube length
557,0
585,0
605,0
624,0
647,0
d
Head tube length
85,0
102,0
108,0
120,0
130,0
e
Head tube angle
68,5º
69,2º
69,2º
69,2º
69,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1074,0
1087,0
1107,0
1124,0
1152,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
30,0
k
Stack height
552,0
571,0
577,0
589,0
599,0
l
Reach
394,0
408,0
426,0
441,0
466,0
m
Standover height
664,0
669,0
671,0
688,0
695,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
325,0
y
