Pivot Mach 4 Carbon Team XTR 1x Race Spec 2019

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
100mm

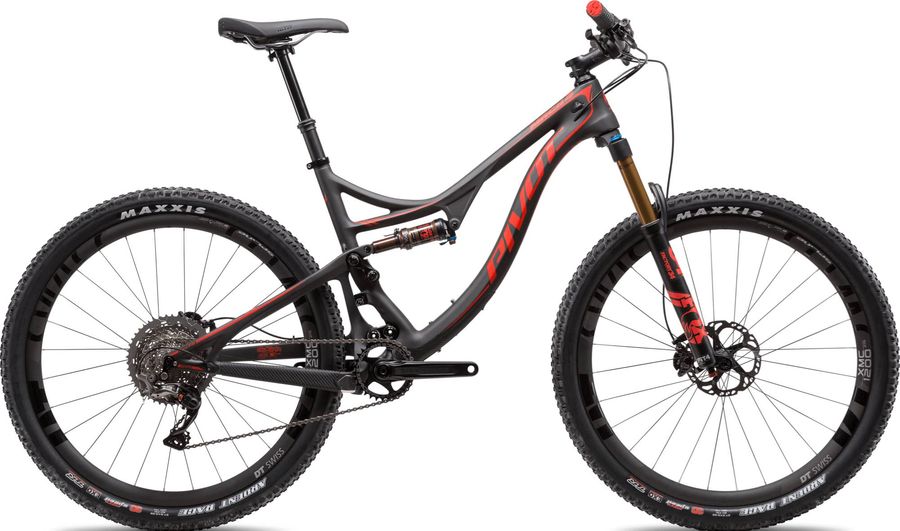

Pivot Mach 4 Carbon Team XTR 1x Race Spec 2019

About the Pivot Mach 4 Carbon Team XTR 1x Race Spec 2019

The Pivot Mach 4 Carbon Team XTR 1x Race Spec 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 4 Carbon Team XTR 1x Race Spec 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team XC/Trail - 75mm
Saddle
Phoenix WTB Team Volt
Headset
Pivot Precision Sealed Cartridge - Race
Seatpost
KS LEV 100mm (XS, SM), Fox Transfer 125mm (MD, LG, XL)
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
Shimano XTR CenterLock - 160mmShimano XTR CenterLock - 160mm
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL 34T
Shifter
Shimano XTR M9100 ISPEC 12-Speed
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Mach 4 Carbon
Front suspension
Fox 32 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XMC 1200 w/ DT Swiss 240 hub, 24mm - 27.5"
Tires
Maxxis Ikon 27.5" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPIMaxxis Ikon 27.5" x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI

Geometry

Size XS SM MD LG LL
a
Seat tube length
368,0
406,0
445,0
483,0
-
b
Seat tube angle
73,8º
73,25º
73,25º
73,25º
73,6º
c
Top tube length
557,0
585,0
605,0
624,0
647,0
d
Head tube length
85,0
102,0
108,0
120,0
130,0
e
Head tube angle
68,5º
69,2º
69,2º
69,2º
69,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1074,0
1087,0
1107,0
1124,0
1152,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
30,0
k
Stack height
552,0
571,0
577,0
589,0
599,0
l
Reach
394,0
408,0
426,0
441,0
466,0
m
Standover height
664,0
669,0
671,0
688,0
695,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
325,0
y
Front center
-
-
-
-
-
