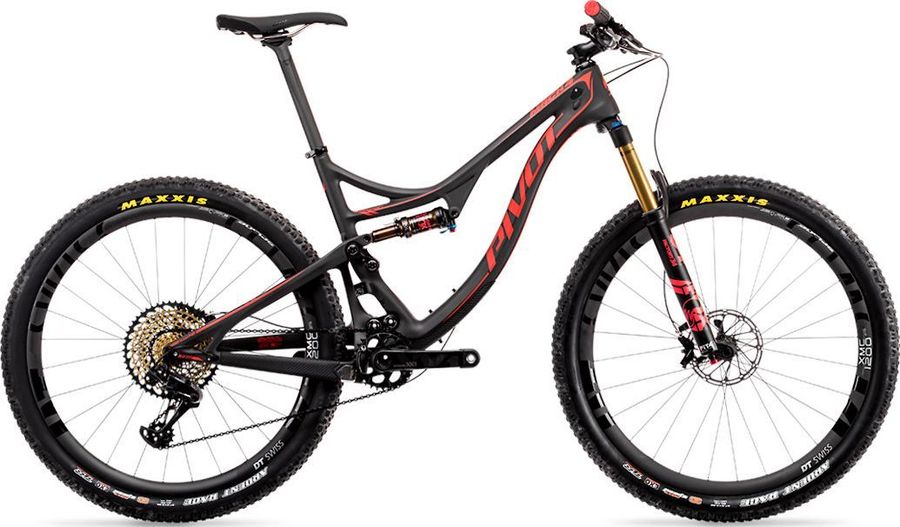

Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race 2018
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
100mm
Rear travel
115mm
About the Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race 2018
The Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Phoenix Team Padloc
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, L/Long)
|
|---|---|
|
Saddle
|
Phoenix WTB Volt Team
|
|
Headset
|
Pivot Precision Sealed Cartridge
|
|
Seatpost
|
Phoenix Team Carbon (FOX Transfer upgrade available)
|
|
Handlebar
|
Phoenix Team Flat, carbon, 35mm clamp, 760mm width
|
|
Brake lever
|
Shimano XTR Trail M9020
|
|
Brakes
|
Shimano XTR BR-M9020
359.6 g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin * SM-RT99-A |
|
|
Chain
|
Shimano, 11-speed
|
|---|---|
|
Crankset
|
Race Face Next SL
|
|
Shifter
|
Shimano XTR Di2, 11-speed
|
|
Bottom bracket
|
PF92
|
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
|
Rear derailleur
|
Shimano Deore XT RD-M8050 Di2
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 32 Factory SC
|
|
Rear suspension
|
Fox Float DPS Factory Kashima
|
|
Rims
|
DT Swiss XMC 1200
|
|---|---|
|
Tires
|
Maxxis Ikon, 2.2" TR 3C EXO MaxxSpeed 120 TPI
|
|
Spokes
|
DT Swiss
|
|
Rear hub
|
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
|
Front hub
|
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
Geometry
| Size | XS | XS | SM | SM | MD | MD | LG | LG | LG |
|---|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
368,3
|
368,3
|
406,4
|
406,4
|
444,5
|
444,5
|
482,6
|
482,6
|
508,0
|
|
b
Seat tube angle
|
73,8º
|
73,8º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,4º
|
|
c
Top tube length
|
557,3
|
557,3
|
585,2
|
585,2
|
605,6
|
605,6
|
624,6
|
624,6
|
647,5
|
|
d
Head tube length
|
85,1
|
85,1
|
101,6
|
101,6
|
107,9
|
107,9
|
119,9
|
119,9
|
130,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
69,2º
|
69,2º
|
69,2º
|
69,2º
|
69,2º
|
69,2º
|
69,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1074,2
|
1074,2
|
1087,4
|
1087,4
|
1107,2
|
1107,2
|
1124,2
|
1124,2
|
1152,4
|
|
i
Chainstay length
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
430,3
|
|
j
Bottom bracket drop
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
30,0
|
|
k
Stack height
|
552,2
|
552,2
|
571,3
|
571,3
|
577,4
|
577,4
|
589,3
|
589,3
|
599,2
|
|
l
Reach
|
394,2
|
394,2
|
408,2
|
408,2
|
426,2
|
426,2
|
441,2
|
441,2
|
466,4
|
|
m
Standover height
|
664,2
|
664,2
|
669,3
|
669,3
|
671,3
|
671,3
|
688,4
|
688,4
|
695,7
|
|
x
Bottom bracket height
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
325,1
|
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
